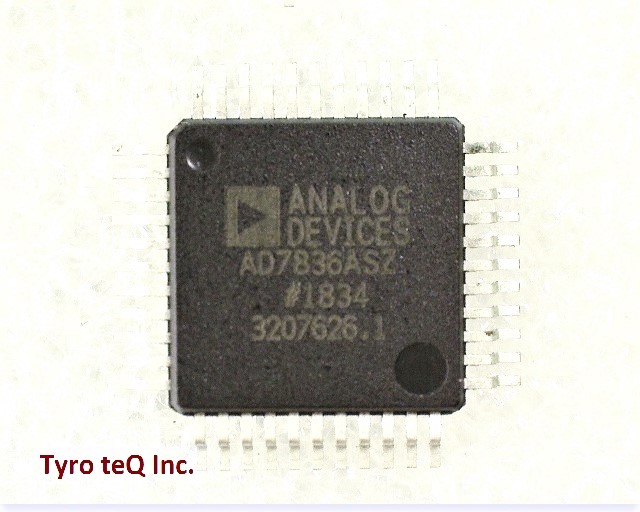

AD7836ASZ データシート

Name: AD7836ASZ
Brand: AD
SKU: 110017309-0000-0000-0000

AD7836ASZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7836ASZ の詳細情報

型番	AD7836ASZ
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e3
Length	10 mm
Linearity Error-Max (EL)	0.0122 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-15 V
Number of Bits	14
Number of Functions	1
Number of Terminals	44
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.45 mm
Settling Time-Nom (tstl)	16 us
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	10 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
