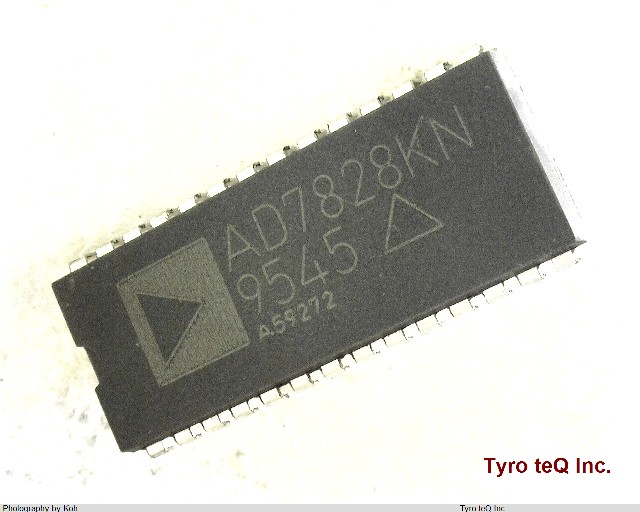

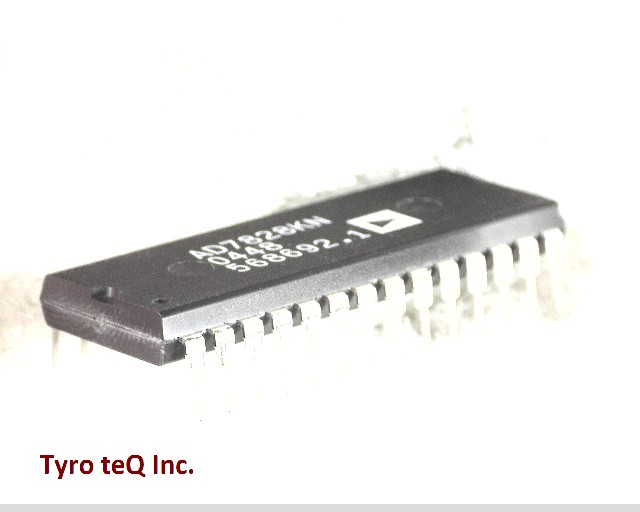

AD7828KN データシート

Name: AD7828KN
Brand: AD
SKU: 110000286-0000-0000-0000

AD7828KN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7828KN の詳細情報

型番	AD7828KN
メーカー	AD
データシート
Analog Input Voltage-Max	5 V
Analog Input Voltage-Min	0 V
Conversion Time-Max	2.4 us
Converter Type	ADC, FLASH METHOD
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37.4 mm
Linearity Error-Max (EL)	0.3906 %
Number of Analog In Channels	8
Number of Bits	8
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	0.05 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	6.35 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	15.24 mm
