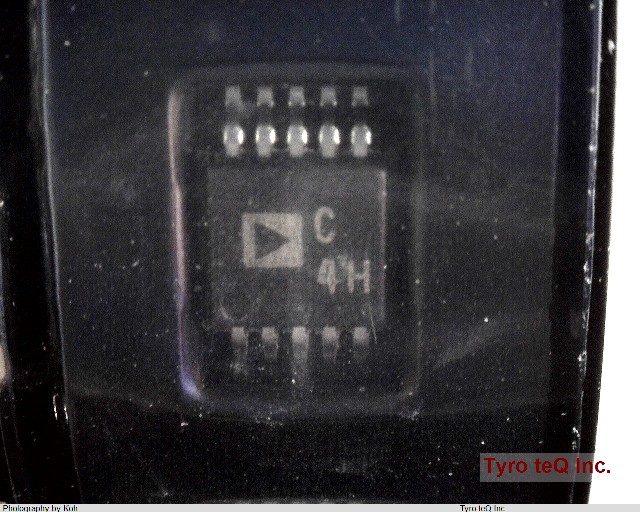

AD7685ARMZ データシート

Name: AD7685ARMZ
Brand: AD
SKU: 110016783-0000-0000-0000

AD7685ARMZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7685ARMZ の詳細情報

型番	AD7685ARMZ
メーカー	AD
データシート
Analog Input Voltage-Max	5.5 V
Analog Input Voltage-Min	0 V
Conversion Time-Max	2.2 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e4
Length	3 mm
Linearity Error-Max (EL)	0.0092 %
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	16
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5,5 V
Qualification Status	Not Qualified
Sample Rate	0.25 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	1.1 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
