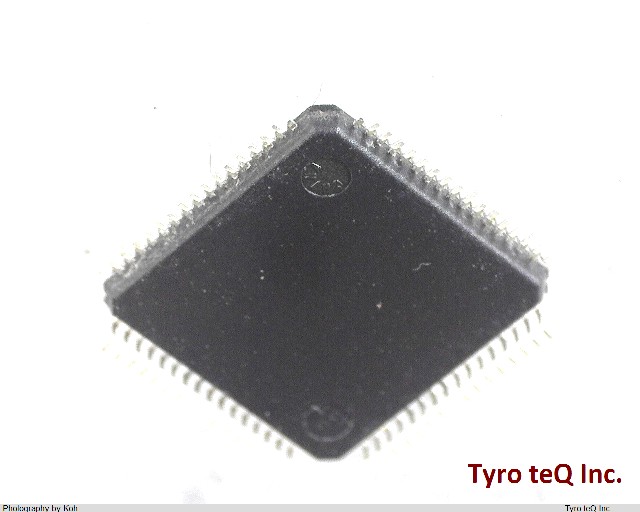

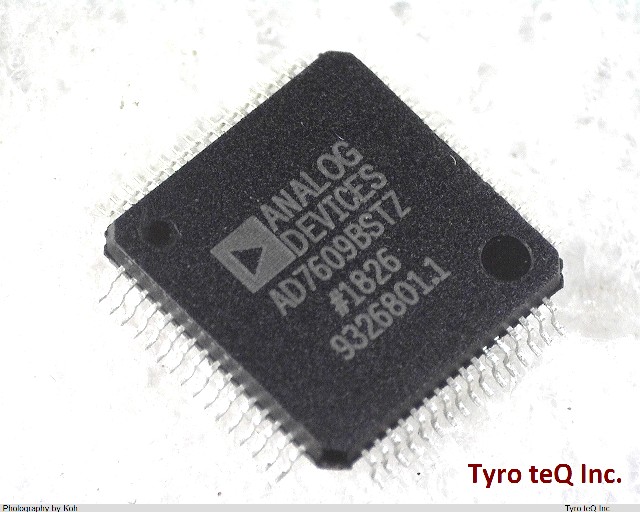

AD7609BSTZ データシート

Name: AD7609BSTZ
Brand: AD
SKU: 110227118-0000-0000-0000

AD7609BSTZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7609BSTZ の詳細情報

型番	AD7609BSTZ
メーカー	AD
データシート
Analog Input Voltage-Max	20 V
Analog Input Voltage-Min	-20 V
Conversion Time-Max	5 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e3
Length	10 mm
Linearity Error-Max (EL)	0.0029 %
Moisture Sensitivity Level	3
Number of Analog In Channels	8
Number of Bits	18
Number of Functions	1
Number of Terminals	64
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL, PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP64,.47SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/5,5 V
Qualification Status	Not Qualified
Sample Rate	0.2 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	1.6 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	10 mm
