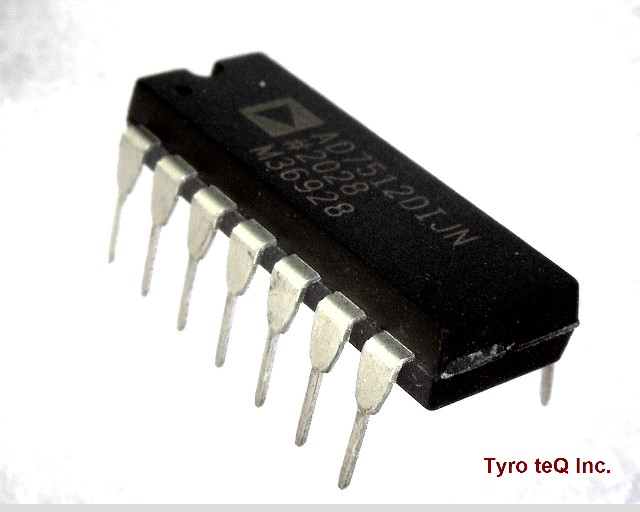

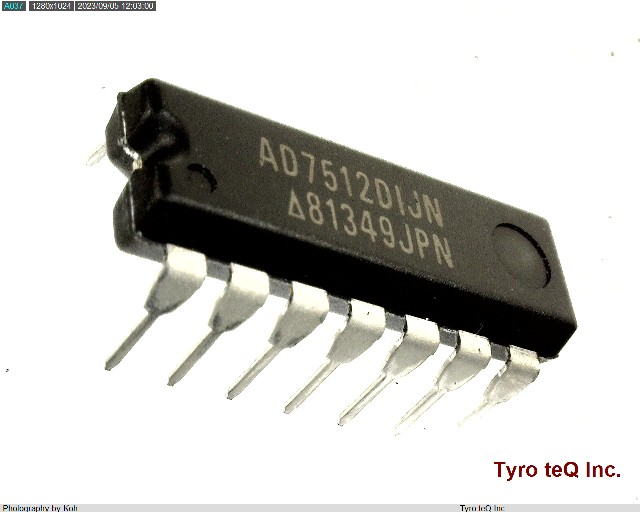

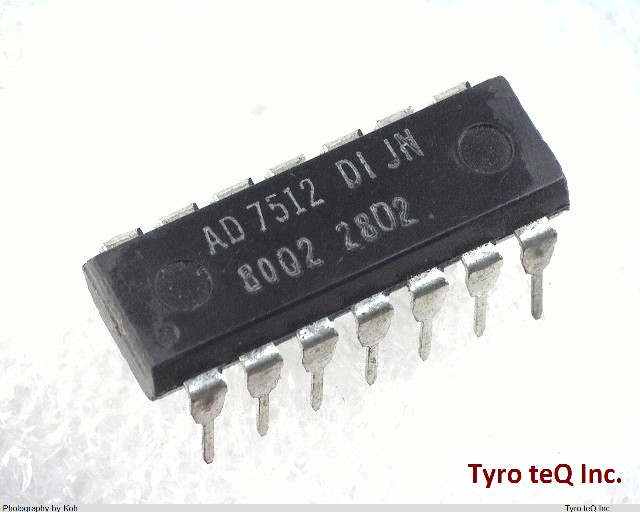

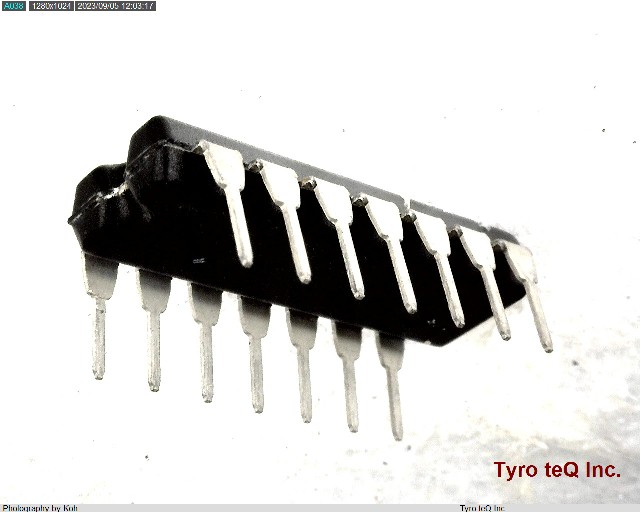

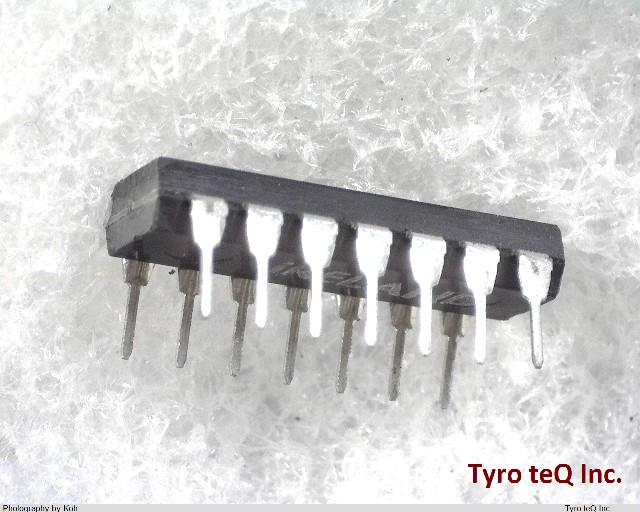

AD7512DIJN データシート

Name: AD7512DIJN
Brand: AD
SKU: 110000057-0000-0000-0000

AD7512DIJN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7512DIJN の詳細情報

型番	AD7512DIJN
メーカー	AD
データシート
Additional Feature	OVERVOLTAGE PROTECTION
Analog IC - Other Type	SPDT
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.305 mm
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	1
Number of Functions	2
Number of Terminals	14
On-state Resistance Match-Nom	1 ohm
On-state Resistance-Max (Ron)	100 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.8 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
