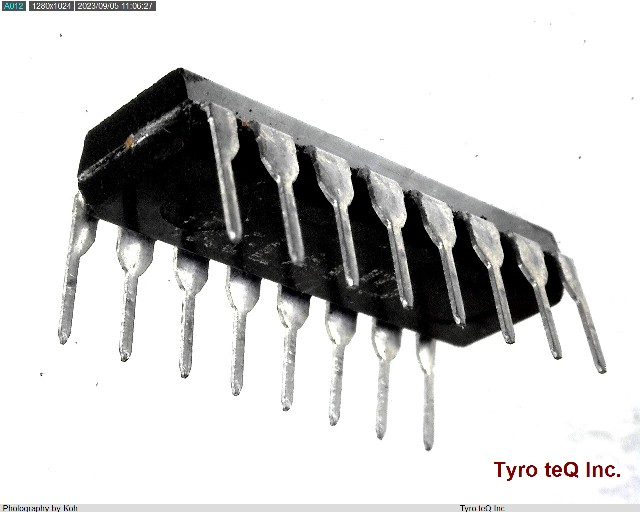

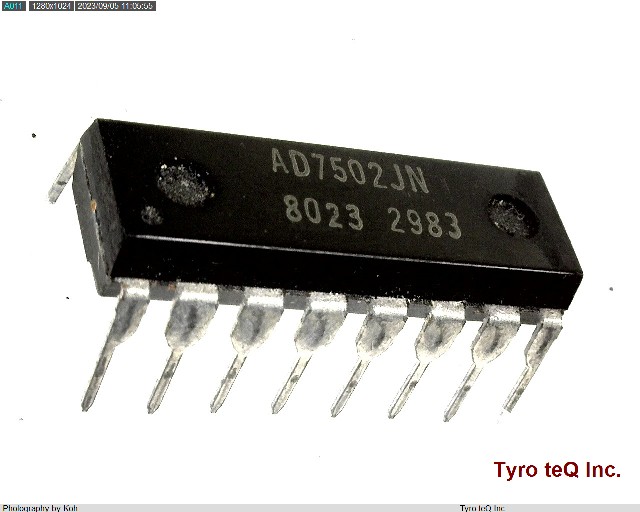

AD7502JN データシート

Name: AD7502JN
Brand: AD
SKU: 110002242-0000-0000-0000

AD7502JN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7502JN の詳細情報

型番	AD7502JN
メーカー	AD
データシート
Analog IC - Other Type	DIFFERENTIAL MULTIPLEXER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	4
Number of Functions	1
Number of Terminals	16
On-state Resistance Match-Nom	6.8 ohm
On-state Resistance-Max (Ron)	300 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.8 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
