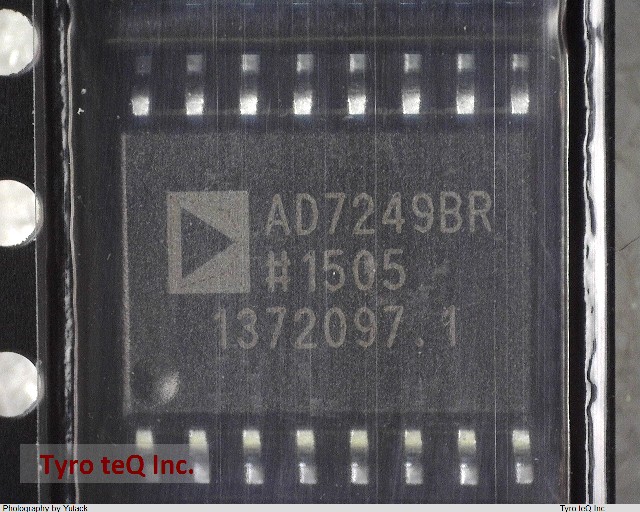

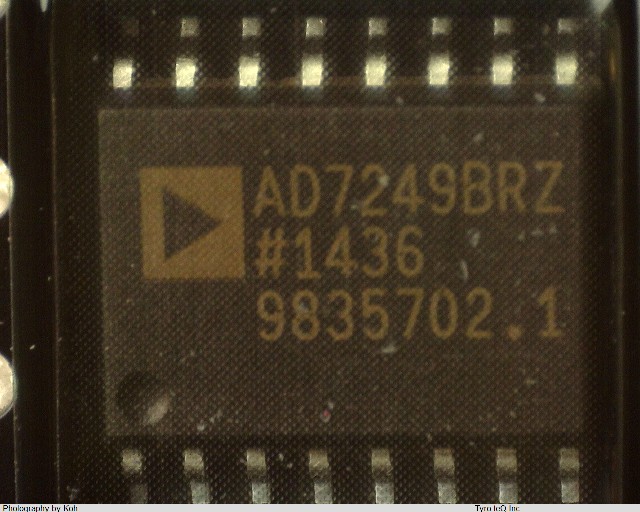

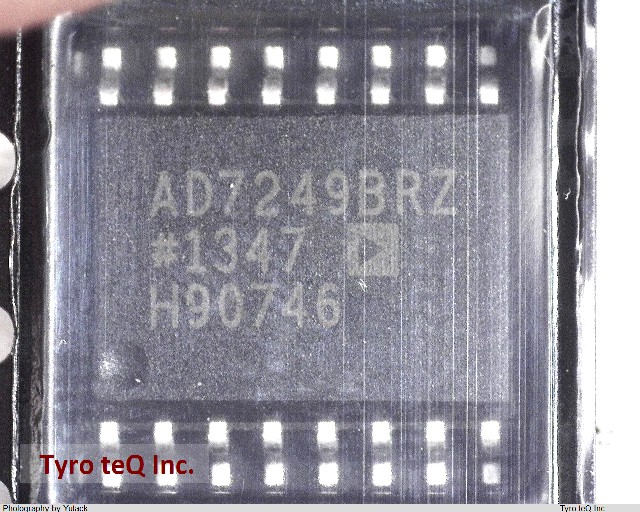

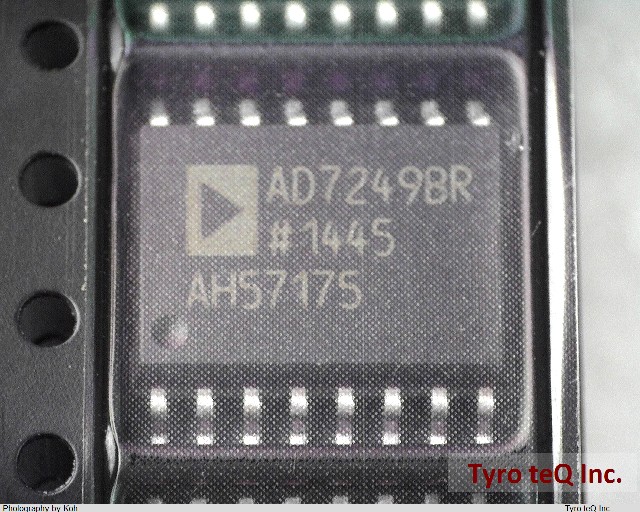

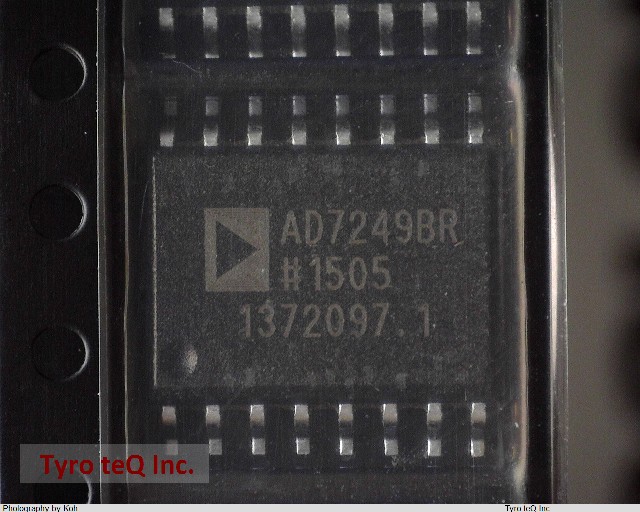

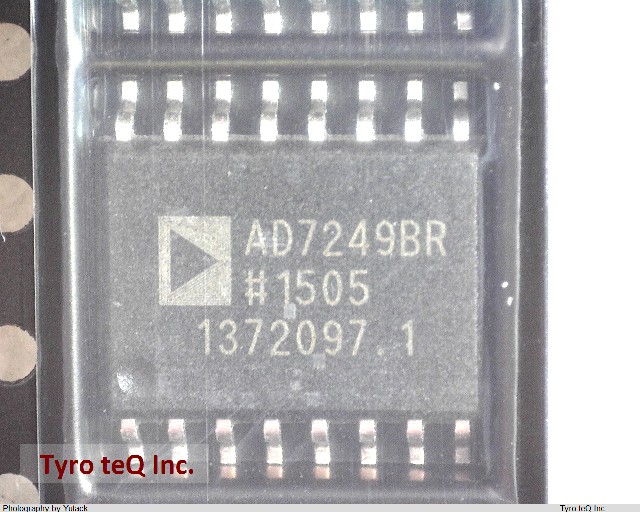

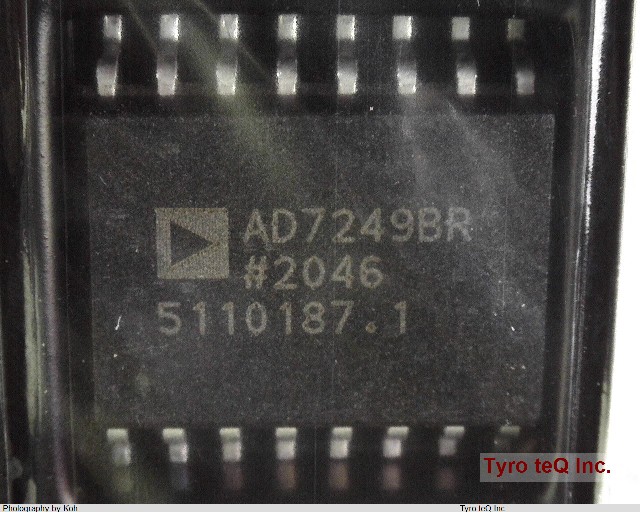

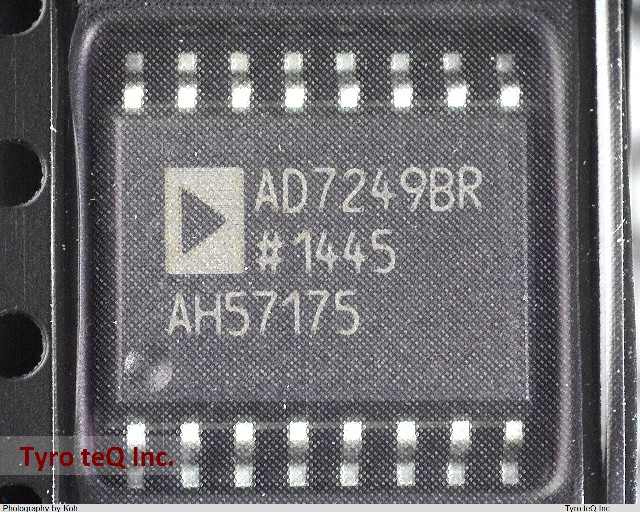

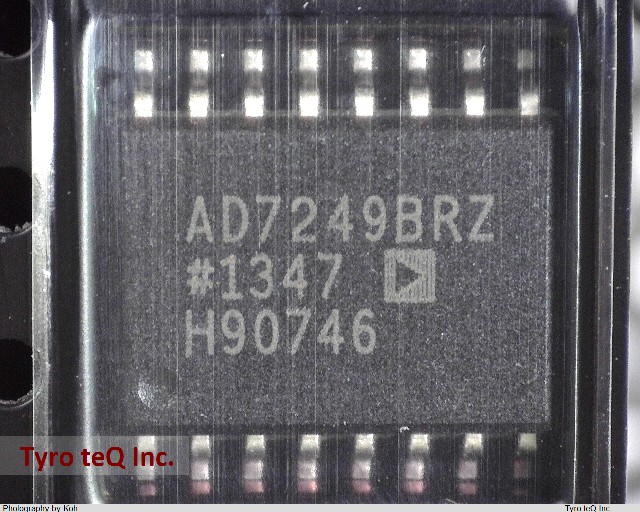

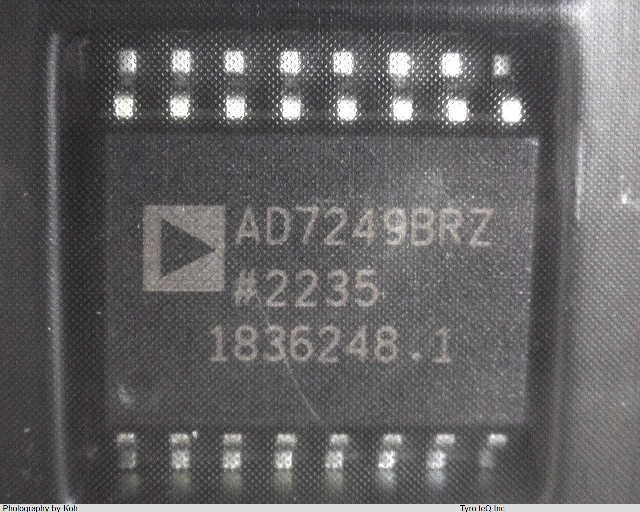

AD7249BRZ データシート

Name: AD7249BRZ
Brand: AD
SKU: 110015585-0000-0000-0000

AD7249BRZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7249BRZ の詳細情報

型番	AD7249BRZ
メーカー	AD
データシート
Analog Output Voltage-Max	5 V
Analog Output Voltage-Min	-5 V
Converter Type	D/A CONVERTER
Input Bit Code	OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format	SERIAL
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.3 mm
Linearity Error-Max (EL)	0.0122 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-12 V
Number of Bits	12
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Settling Time-Nom (tstl)	5 us
Supply Voltage-Nom	12 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
