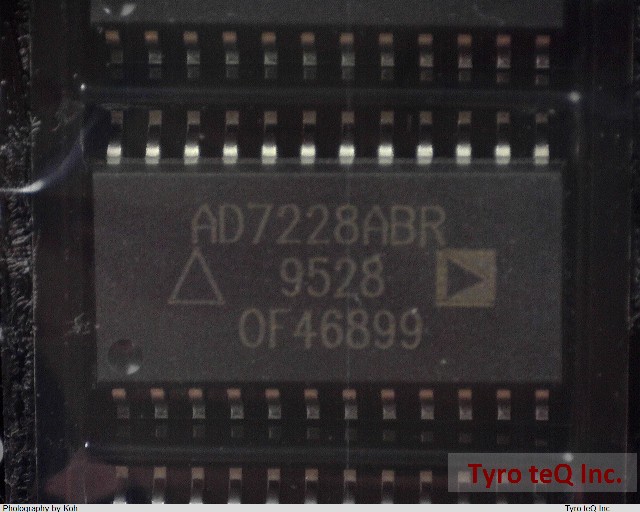

AD7228ABR-REEL データシート

Name: AD7228ABR-REEL
Brand: AD
SKU: 110269227-0000-0000-0000

AD7228ABR-REEL - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7228ABR-REEL の詳細情報

型番	AD7228ABR-REEL
メーカー	AD
データシート
Analog Output Voltage-Max	5 V
Analog Output Voltage-Min	-5 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, 8 BITS
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.4 mm
Linearity Error-Max (EL)	0.391 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-5 V
Number of Bits	8
Number of Functions	8
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5/15,GND/-5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Settling Time-Max	5 us
Sub Category	Other Converters
Supply Current-Max	20 mA
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn85Pb15)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
