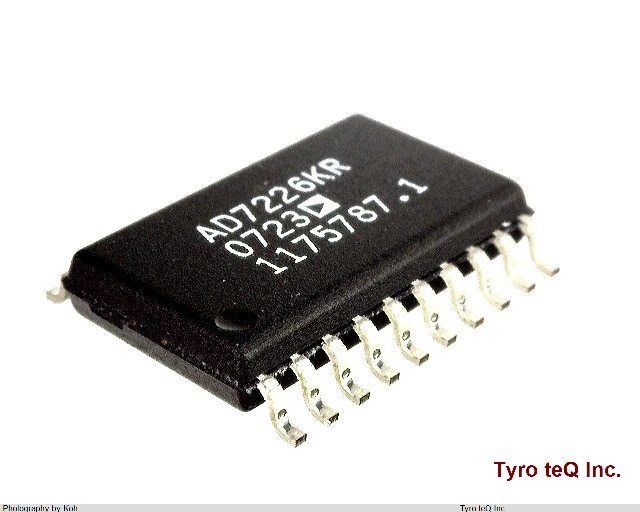

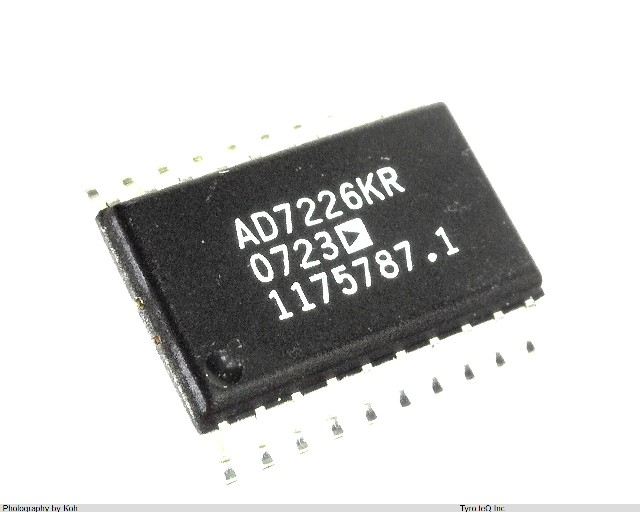

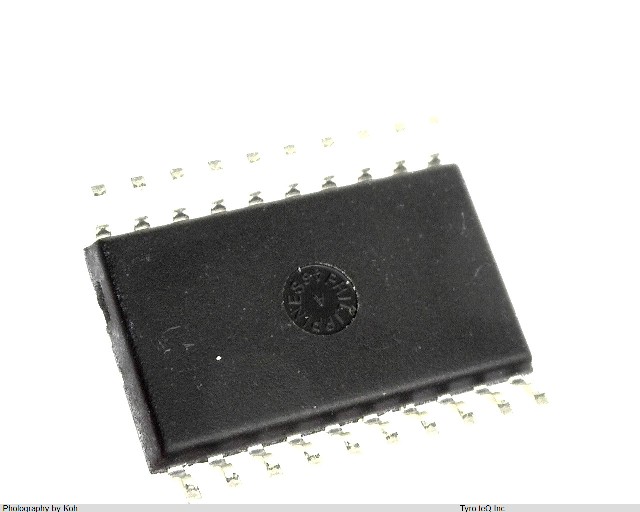

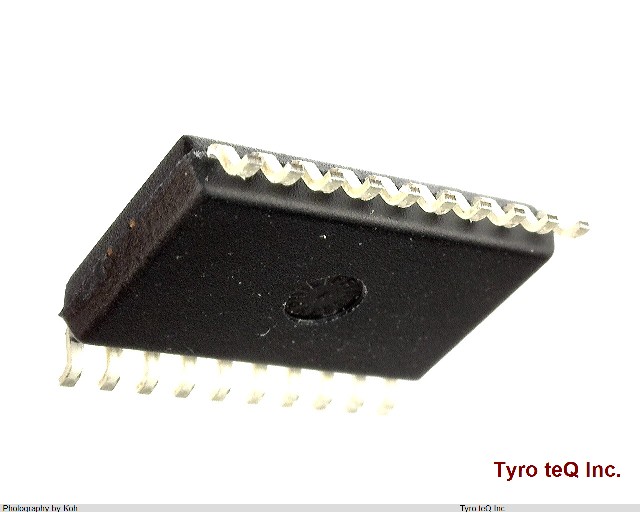

AD7226KR データシート

Name: AD7226KR
Brand: AD
SKU: 110015489-0000-0000-0000

AD7226KR - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7226KR の詳細情報

型番	AD7226KR
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	0 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY, OFFSET BINARY
Input Format	PARALLEL, 8 BITS
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Linearity Error-Max (EL)	0.1953 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-5 V
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	12/15, GND/-5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Settling Time-Max	20 us
Settling Time-Nom (tstl)	3 us
Sub Category	Other Converters
Supply Current-Max	13 mA
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
