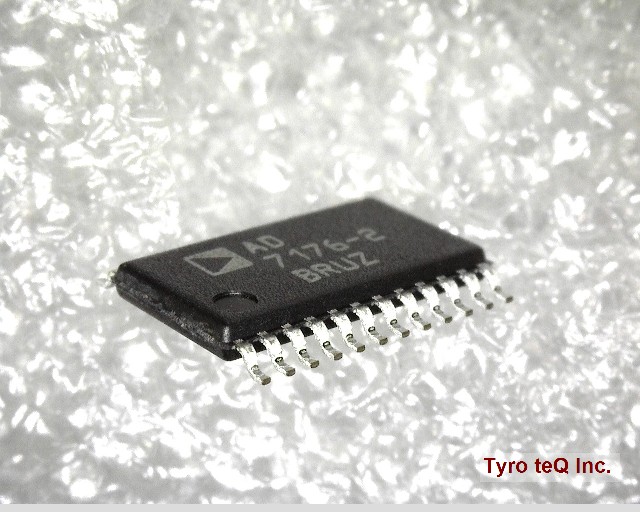

AD7176-2BRUZ データシート

Name: AD7176-2BRUZ
Brand: AD
SKU: 110267350-0000-0000-0000

AD7176-2BRUZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7176-2BRUZ の詳細情報

型番	AD7176-2BRUZ
メーカー	AD
データシート
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Min	-2.5 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e3
Length	7.8 mm
Linearity Error-Max (EL)	714 %
Moisture Sensitivity Level	3
Number of Analog In Channels	4
Number of Bits	24
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	OFFSET BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP24,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/5,5 V
Qualification Status	Not Qualified
Sample Rate	0.25 MHz
Seated Height-Max	1.2 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
