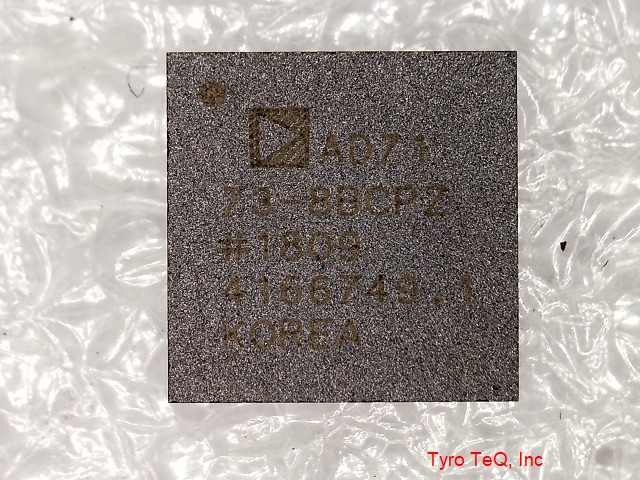

AD7173-8BCPZ データシート

Name: AD7173-8BCPZ
Brand: AD
SKU: 110245626-0000-0000-0000

AD7173-8BCPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7173-8BCPZ の詳細情報

型番	AD7173-8BCPZ
メーカー	AD
データシート
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Min	-2.5 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	S-XQCC-N40
Length	6 mm
Linearity Error-Max (EL)	0.00075 %
Moisture Sensitivity Level	3
Number of Analog In Channels	16
Number of Bits	24
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	OFFSET BINARY
Output Format	SERIAL
Package Body Material	UNSPECIFIED

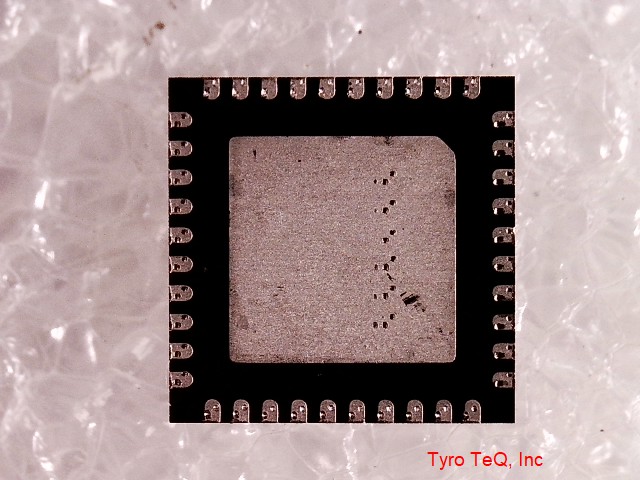

Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Sample Rate	0.03125 MHz
Seated Height-Max	0.8 mm
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	6 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
