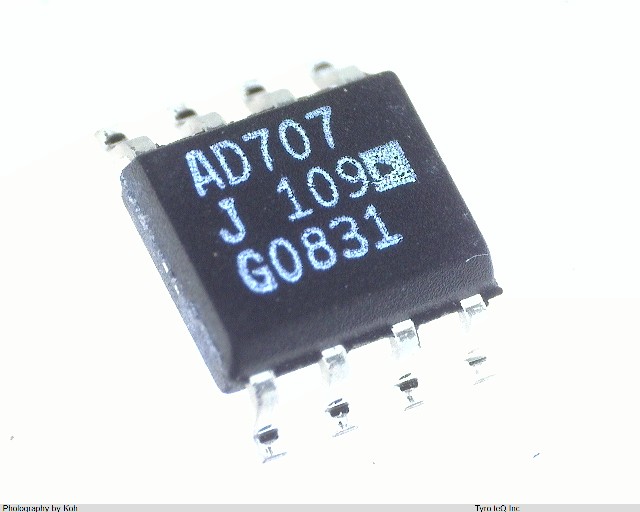

AD707JR データシート

Name: AD707JR
Brand: AD
SKU: 110005399-0000-0000-0000

AD707JR - AD の商品詳細ページです。

２営業日以内に回答いたします

AD707JR の詳細情報

型番	AD707JR
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.004 uA
Bias Current-Max (IIB) @25C	0.0025 uA
Common-mode Reject Ratio-Min	120 dB
Common-mode Reject Ratio-Nom	140 dB
Frequency Compensation	YES
Input Offset Voltage-Max	100 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Offset	YES
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	220
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	0.15 V/us
Slew Rate-Nom	0.3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	3 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	900 kHz
Voltage Gain-Min	3000000
Width	3.9 mm
