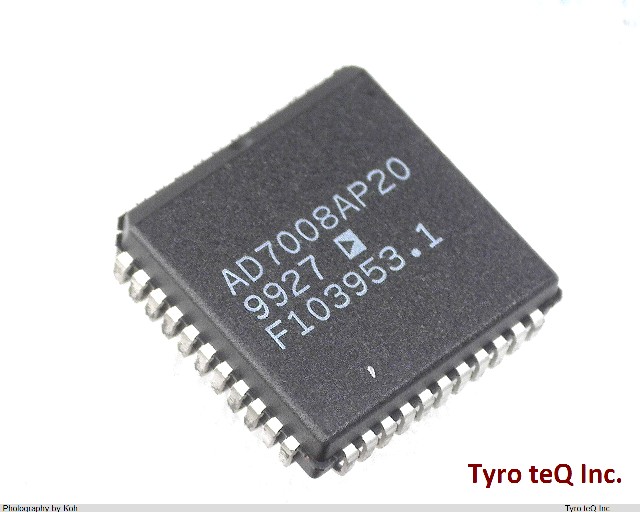

AD7008AP20 データシート

Name: AD7008AP20
Brand: AD
SKU: 110015397-0000-0000-0000

AD7008AP20 - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7008AP20 の詳細情報

型番	AD7008AP20
メーカー	AD
データシート
Boundary Scan	NO
Clock Frequency-Max	20 MHz
External Data Bus Width	1
JESD-30 Code	S-PQCC-J44
JESD-609 Code	e0
Length	16.5862 mm
Low Power Mode	YES
Number of Terminals	44
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Data Bus Width	1
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Supply Current-Max	52 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn85Pb15)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	16.5862 mm
uPs/uCs/Peripheral ICs Type	DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
