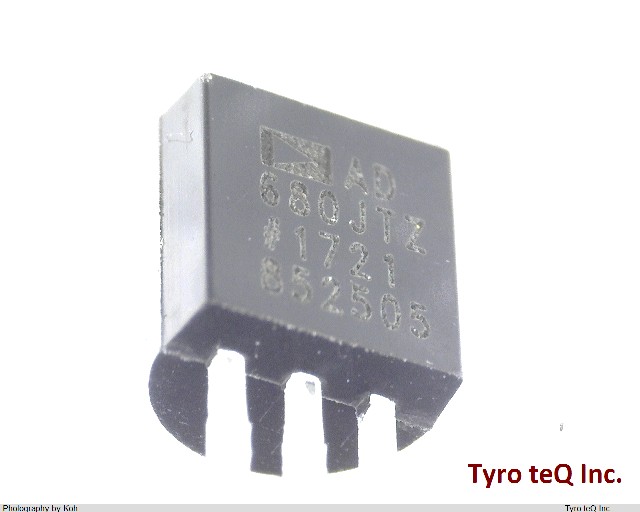

AD680JTZ データシート

Name: AD680JTZ
Brand: AD
SKU: 110002111-0000-0000-0000

AD680JTZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD680JTZ の詳細情報

型番	AD680JTZ
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	2.51 V
Output Voltage-Min	2.49 V
Output Voltage-Nom	2.5 V
Package Body Material	METAL
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Sub Category	Voltage References
Supply Current-Max (Isup)	0.28 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	30 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	WIRE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.4 %
