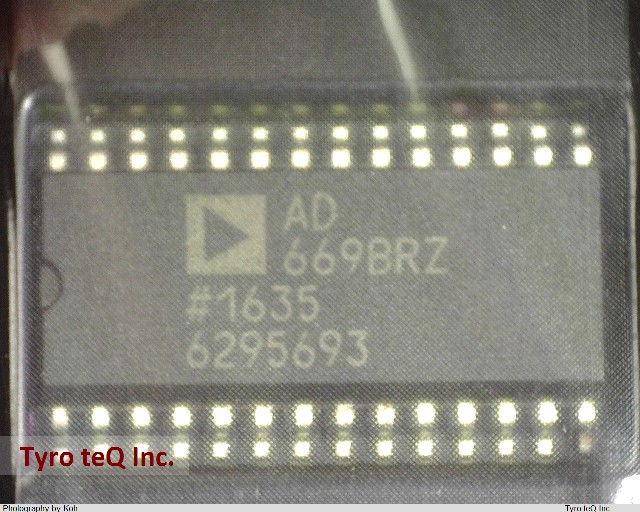

AD669BRZ データシート

Name: AD669BRZ
Brand: AD
SKU: 110015299-0000-0000-0000

AD669BRZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD669BRZ の詳細情報

型番	AD669BRZ
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e3
Length	17.845 mm
Linearity Error-Max (EL)	0.0031 %
Moisture Sensitivity Level	5
Negative Supply Voltage-Nom	-15 V
Number of Bits	16
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Settling Time-Max	13 us
Settling Time-Nom (tstl)	10 us
Supply Current-Max	18 mA
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.495 mm
