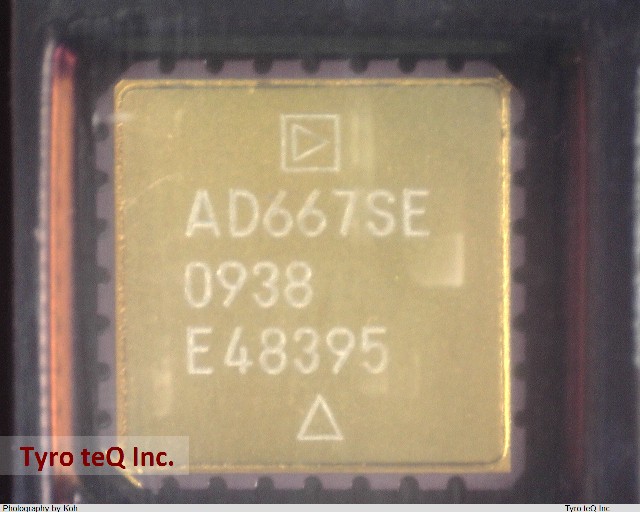

AD667SE データシート

Name: AD667SE
Brand: AD
SKU: 110002095-0000-0000-0000

AD667SE - AD の商品詳細ページです。

２営業日以内に回答いたします

AD667SE の詳細情報

型番	AD667SE
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	S-CQCC-N28
JESD-609 Code	e0
Length	11.43 mm
Linearity Error-Max (EL)	0.0183 %
Negative Supply Voltage-Nom	-12 V
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	QCCN
Package Equivalence Code	LCC28,.45SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Qualification Status	Not Qualified
Screening Level	MIL-STD-883 Class B
Seated Height-Max	2.29 mm
Settling Time-Max	4 us
Settling Time-Nom (tstl)	3 us
Supply Voltage-Nom	12 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	11.43 mm
