AD654JNZ データシート

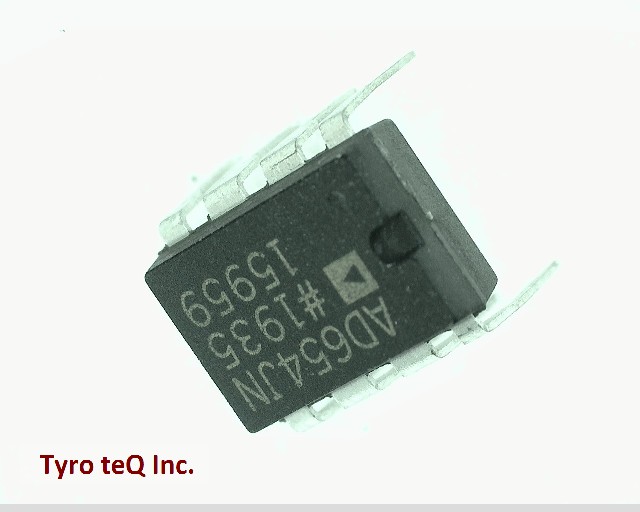

Name: AD654JNZ
Brand: AD
SKU: 110002080-0000-0000-0000

AD654JNZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD654JNZ の詳細情報

型番	AD654JNZ
メーカー	AD
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.88 mm
Linearity Error-Max (EL)	0.4 %
Negative Input Voltage-Max	-5 V
Number of Functions	1
Number of Terminals	8
Operating Frequency-Max	0.5 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Positive Input Voltage-Max	1 V
Power Supplies	5/36/+-5/+-18 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	3 mA
Supply Voltage-Max	36 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
