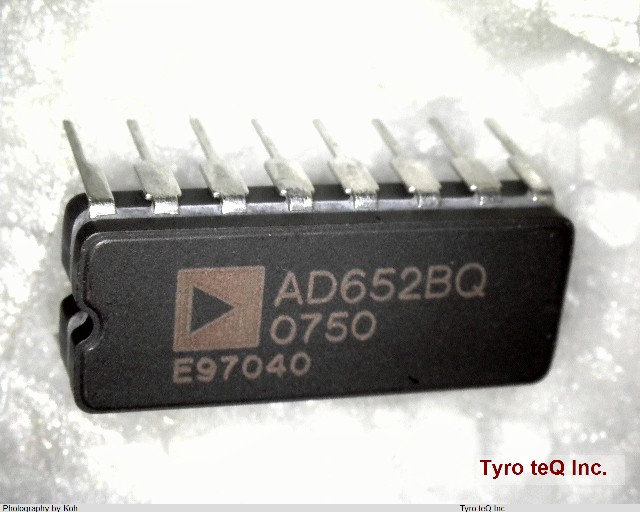

AD652BQ データシート

Name: AD652BQ
Brand: AD
SKU: 110015165-0000-0000-0000

AD652BQ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD652BQ の詳細情報

型番	AD652BQ
メーカー	AD
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-GDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Linearity Error-Max (EL)	0.02 %
Moisture Sensitivity Level	1
Negative Input Voltage-Max	-5 V
Negative Supply Voltage-Max	-18 V
Negative Supply Voltage-Min	-6 V
Negative Supply Voltage-Nom	-15 V
Number of Functions	1
Number of Terminals	16
Operating Frequency-Max	4 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Positive Input Voltage-Max	5 V
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	15 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	6 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Total Error-Max	0.5 %
Width	7.62 mm
