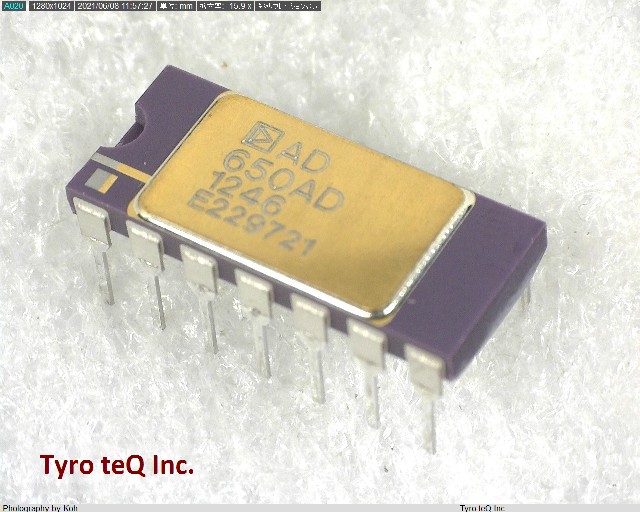

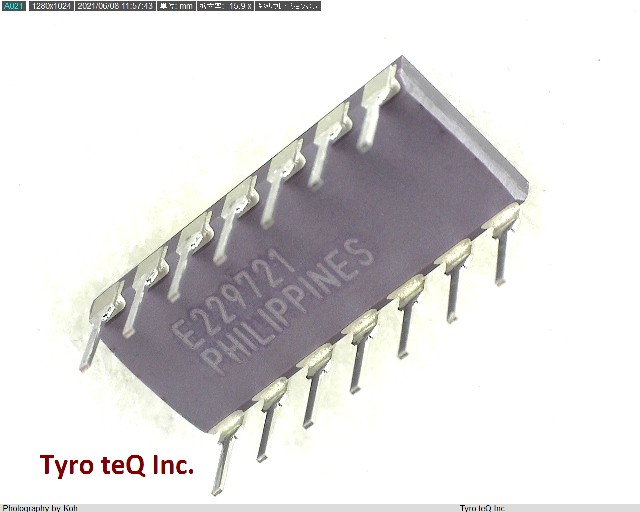

AD650AD データシート

Name: AD650AD
Brand: AD
SKU: 110000203-0000-0000-0000

AD650AD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD650AD の詳細情報

型番	AD650AD
メーカー	AD
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	19.43 mm
Linearity Error-Max (EL)	0.005 %
Negative Input Voltage-Max	-10 V
Negative Supply Voltage-Max	-18 V
Negative Supply Voltage-Min	-9 V
Negative Supply Voltage-Nom	-15 V
Number of Functions	1
Number of Terminals	14
Operating Frequency-Max	1 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Positive Input Voltage-Max	0 V
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	8 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	9 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn63Pb37)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
