AD642JH データシート Ad02

AD642JH - AD の商品詳細ページです。

1

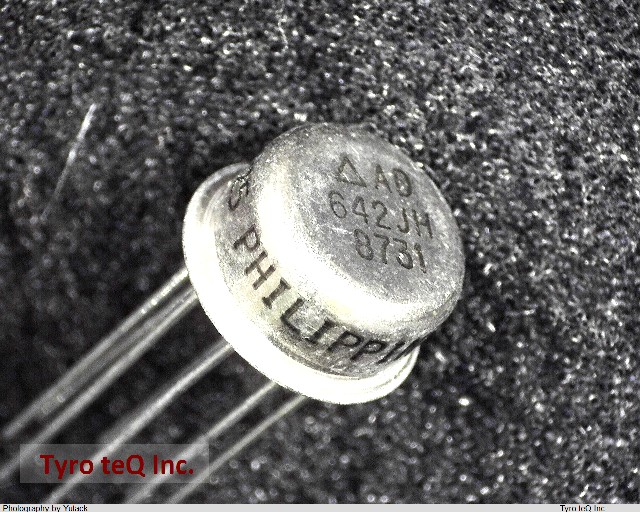

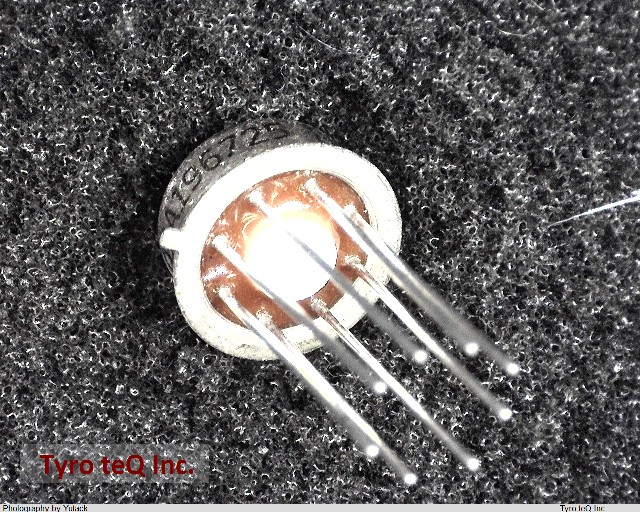

AD642JH
  • AD642JH
  • AD642JH
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD642JH の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD642JH
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 7.5E-5 uA
Common-mode Reject Ratio-Min 76 dB
Common-mode Reject Ratio-Nom 76 dB
Frequency Compensation YES
Input Offset Voltage-Max 3500 uV
JESD-30 Code O-MBCY-W8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material METAL
Package Code TO-99
Package Equivalence Code CAN8,.2
Package Shape ROUND
Package Style CYLINDRICAL Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Slew Rate-Min 2 V/us
Slew Rate-Nom 3 V/us
Sub Category Operational Amplifier
Supply Current-Max 2.8 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form WIRE
Terminal Position BOTTOM
Unity Gain BW-Nom 1000 kHz
Voltage Gain-Min 100000
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
