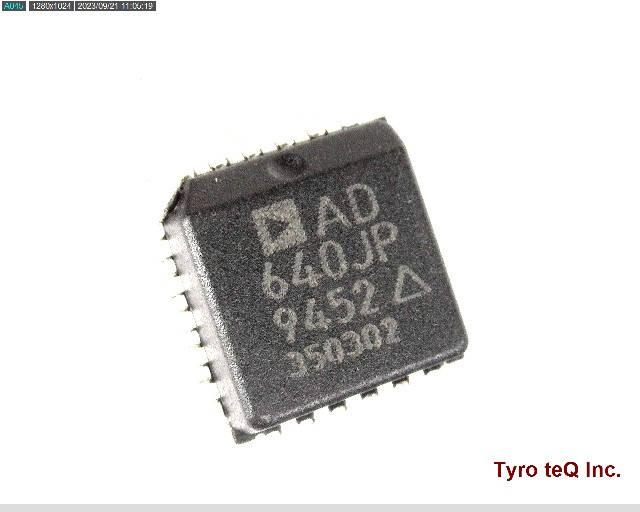

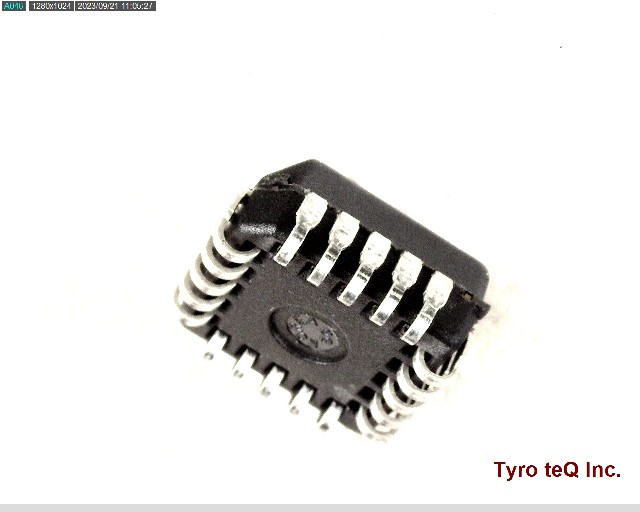

AD640JP データシート

Name: AD640JP
Brand: AD
SKU: 110002068-0000-0000-0000

AD640JP - AD の商品詳細ページです。

２営業日以内に回答いたします

AD640JP の詳細情報

型番	AD640JP
メーカー	AD
データシート
Analog IC - Other Type	LOG OR ANTILOG AMPLIFIER
Bandwidth-Nom	145 kHz
JESD-30 Code	S-PQCC-J20
JESD-609 Code	e0
Length	8.965 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-7.5 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Input Voltage-Max	-2 V
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC20,.4SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	225
Positive Input Voltage-Max	0.3 V
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	Analog Computational Functions
Supply Current-Max (Isup)	60 mA
Supply Voltage-Max (Vsup)	7.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	8.965 mm
