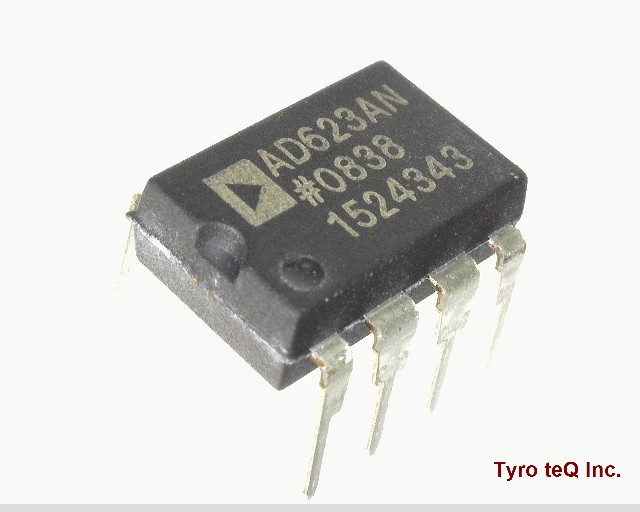

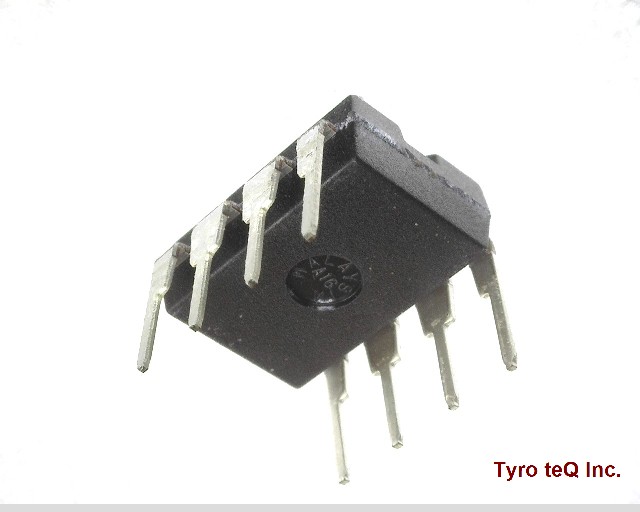

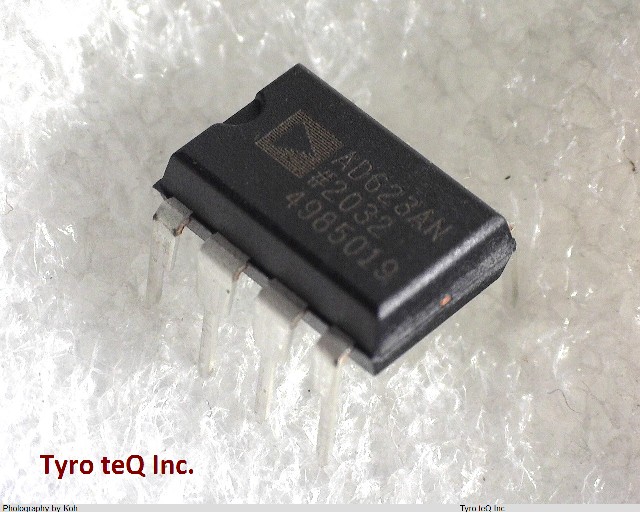

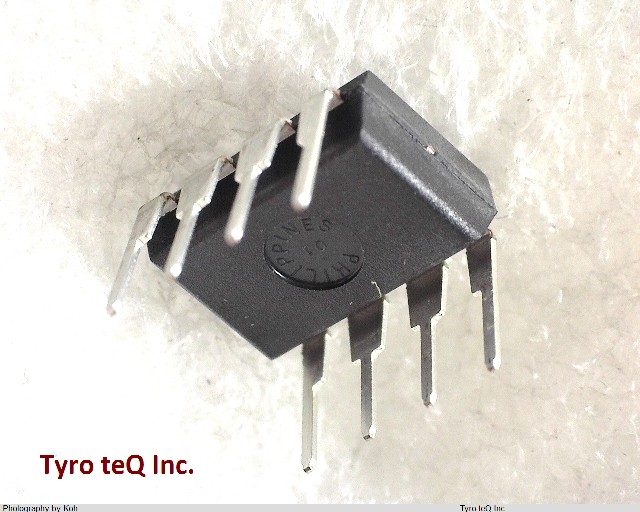

AD623ANZ データシート

Name: AD623ANZ
Brand: AD
SKU: 110014999-0000-0000-0000

AD623ANZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD623ANZ の詳細情報

型番	AD623ANZ
メーカー	AD
データシート
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.0275 uA
Bandwidth (3dB)-Nom	0.8 MHz
Common-mode Reject Ratio-Min	70 dB
Input Offset Current-Max (IIO)	0.0025 uA
Input Offset Voltage-Max	350 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.88 mm
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Slew Rate-Nom	0.3 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	0.625 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Gain-Max	1000
Voltage Gain-Min	1
Width	7.62 mm
