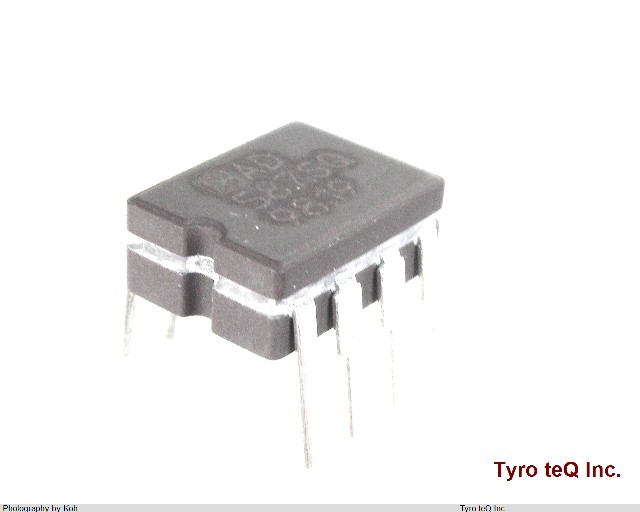

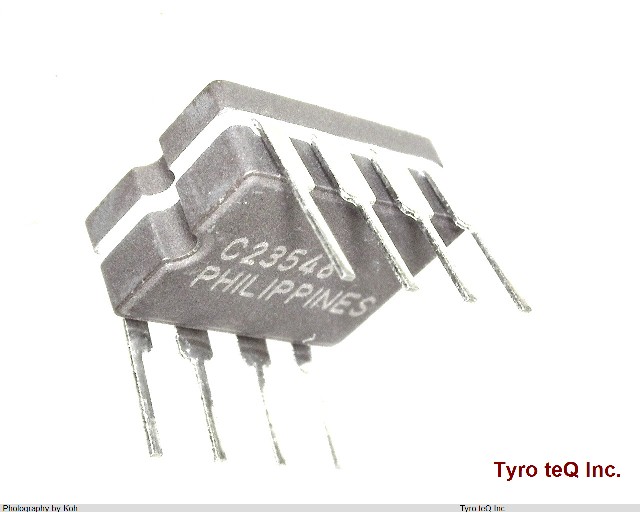

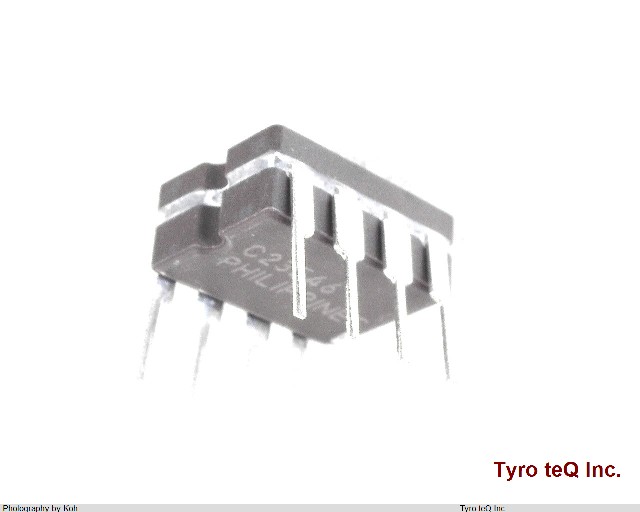

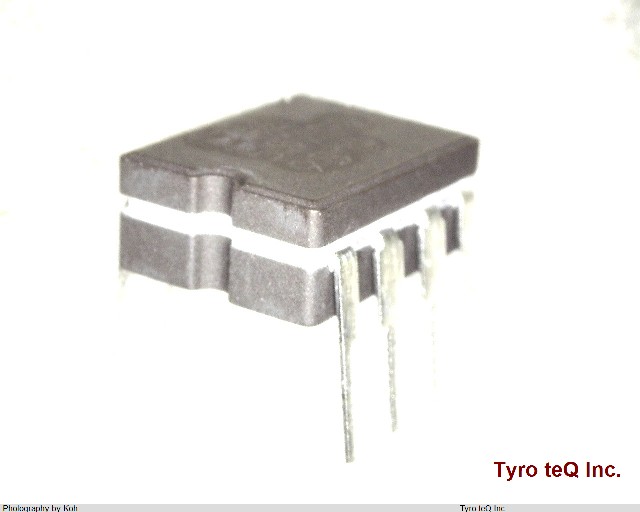

AD587SQ データシート

Name: AD587SQ
Brand: AD
SKU: 110248090-0000-0000-0000

AD587SQ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD587SQ の詳細情報

型番	AD587SQ
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-GDIP-T8
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Voltage-Max	10.01 V
Output Voltage-Min	9.99 V
Output Voltage-Nom	10 V
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	4 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	13.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	20 ppm/Cel
Temperature Grade	MILITARY
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Trim/Adjustable Output	YES V
Voltage Tolerance-Max	0.1 %
Width	7.62 mm
