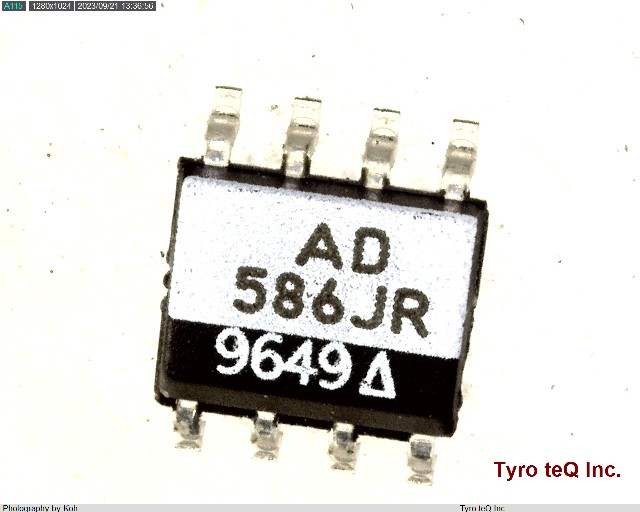

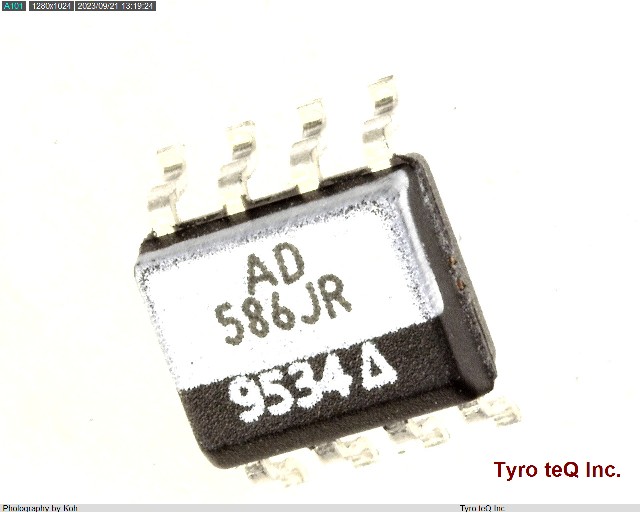

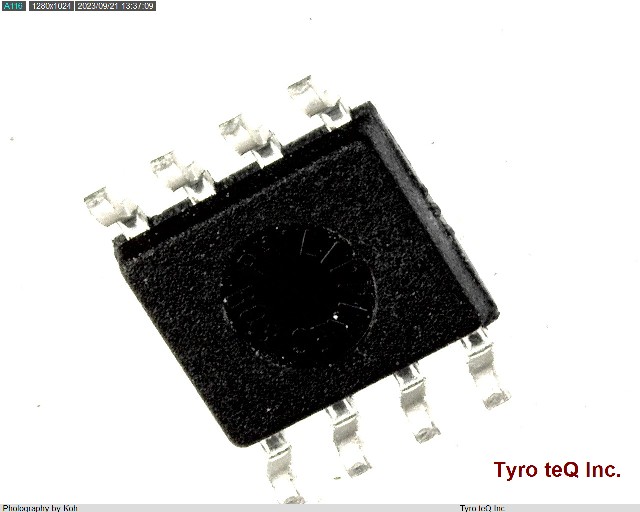

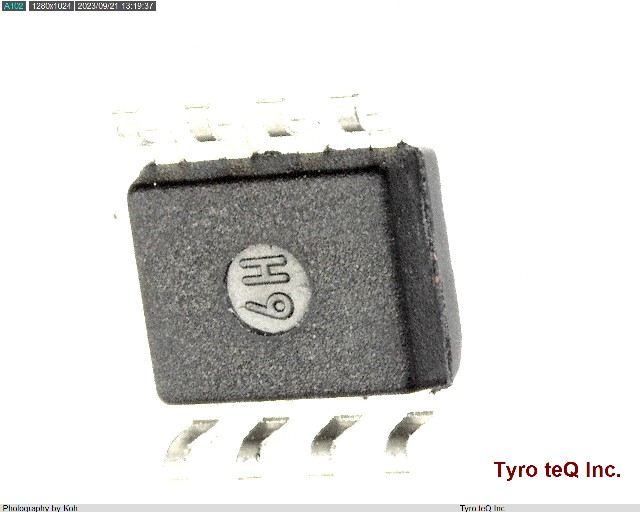

AD586JR データシート

Name: AD586JR
Brand: AD
SKU: 110001996-0000-0000-0000

AD586JR - AD の商品詳細ページです。

２営業日以内に回答いたします

AD586JR の詳細情報

型番	AD586JR
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	5.02 V
Output Voltage-Min	4.98 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	3 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	10.8 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temp Coef of Voltage-Max	25 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	YES V
Voltage Tolerance-Max	0.4 %
Width	3.9 mm
