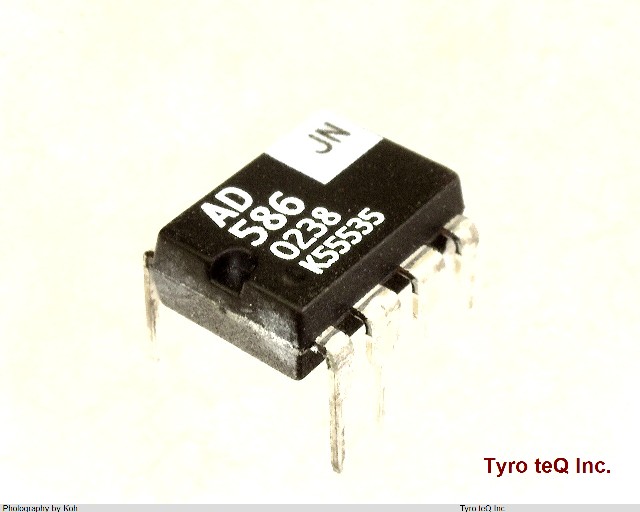

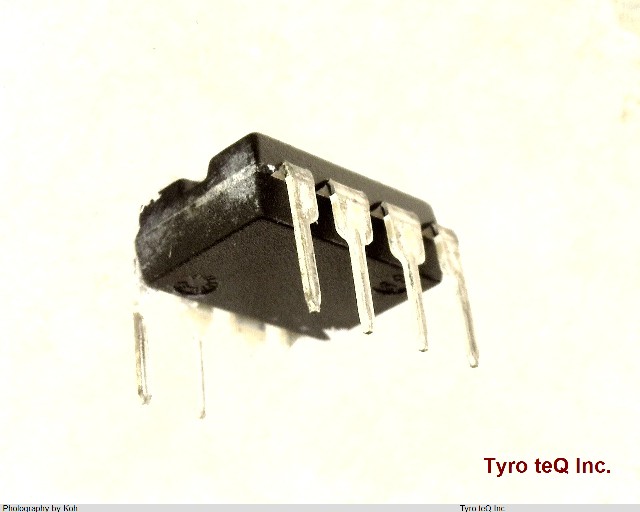

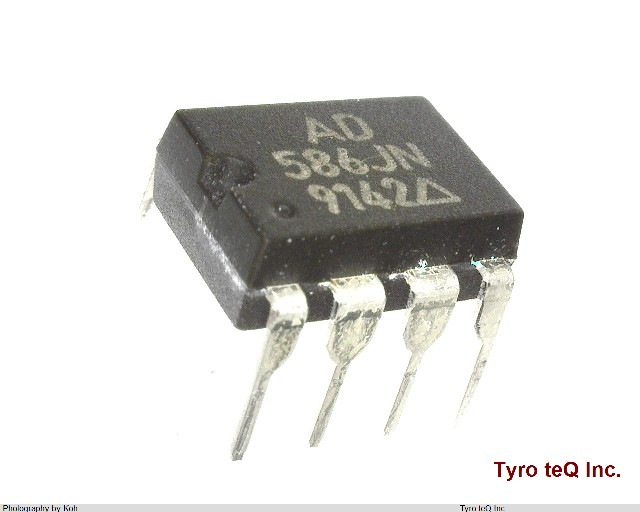

AD586JN データシート

Name: AD586JN
Brand: AD
SKU: 110000227-0000-0000-0000

AD586JN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD586JN の詳細情報

型番	AD586JN
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.27 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	5.02 V
Output Voltage-Min	4.98 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	3 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	10.8 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	25 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Trim/Adjustable Output	YES V
Voltage Tolerance-Max	0.4 %
Width	7.62 mm
