AD582KD データシート

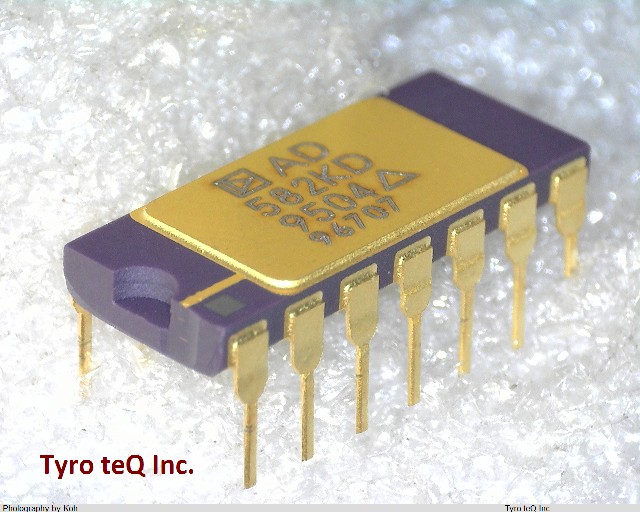

Name: AD582KD
Brand: AD
SKU: 110000217-0000-0000-0000

AD582KD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD582KD の詳細情報

型番	AD582KD
メーカー	AD
データシート
Acquisition Time-Nom	25 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	18 V
Analog Input Voltage-Min	-18 V
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	19.304 mm
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel

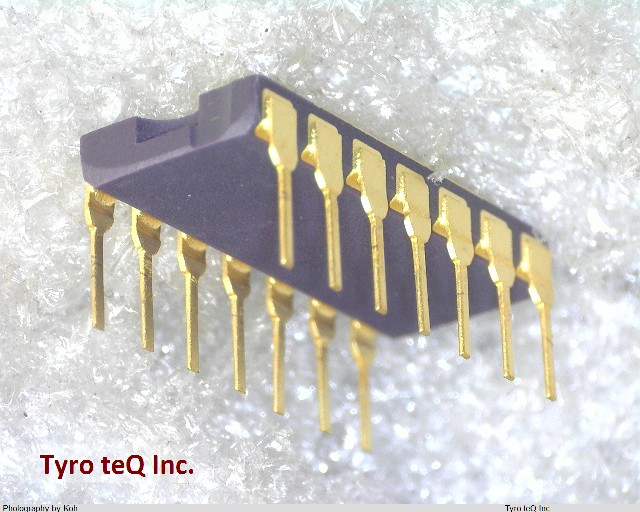

Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	5.08 mm
Sub Category	Sample and Hold Circuit
Supply Current-Max	4.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	JFET
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn63Pb37)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
