AD548JN の詳細情報

  • 仕様・詳細
  • メーカー情報

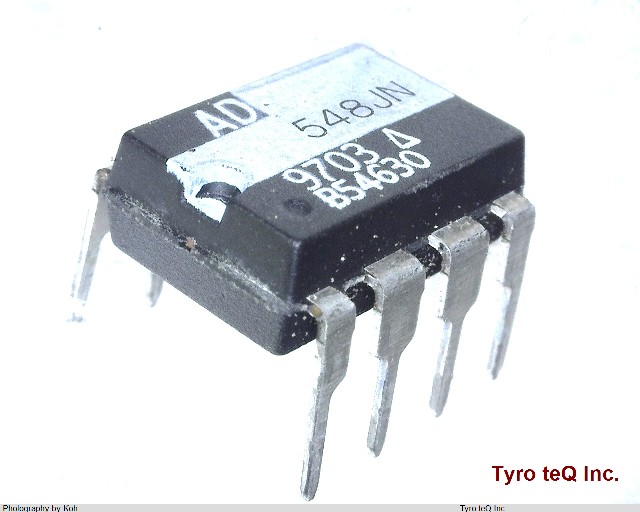

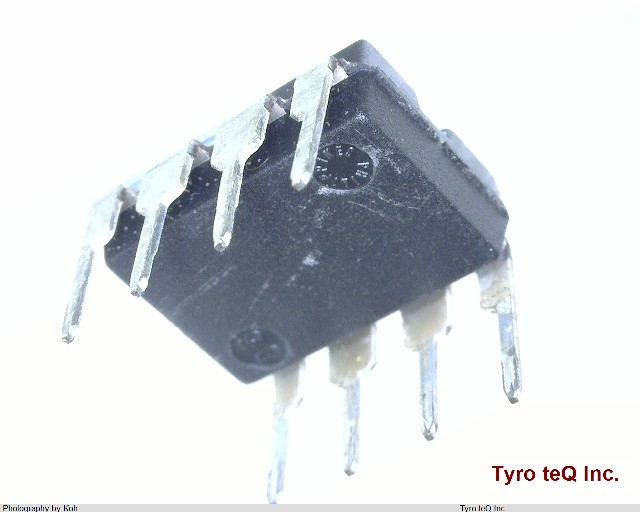

型番AD548JN
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 2.0E-5 uA
Bias Current-Max (IIB) @25C 2.0E-5 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 84 dB
Frequency Compensation YES
Input Offset Voltage-Max 3000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 4.44 mm
Slew Rate-Min 1 V/us
Slew Rate-Nom 1.8 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.2 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 1000 kHz
Voltage Gain-Min 150000
Width 7.62 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
