AD544JH データシート Ad02

AD544JH - AD の商品詳細ページです。

1

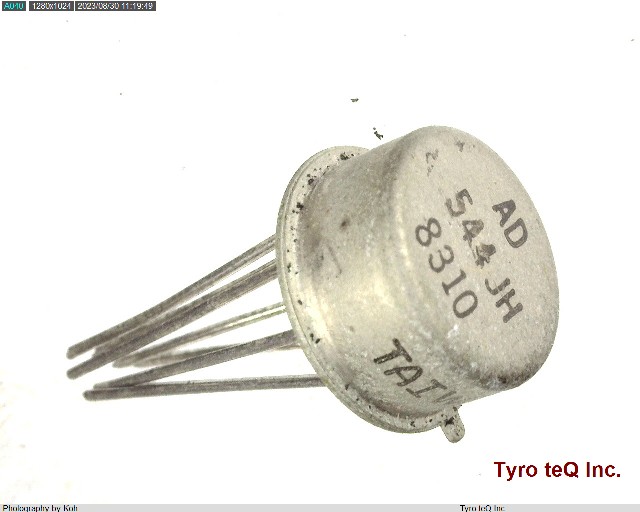

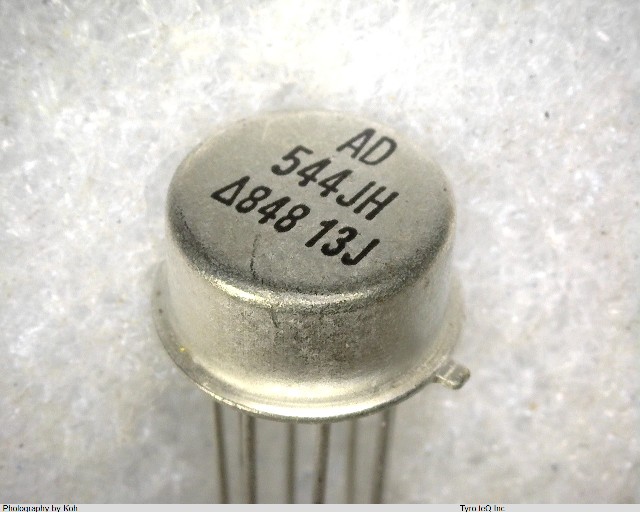

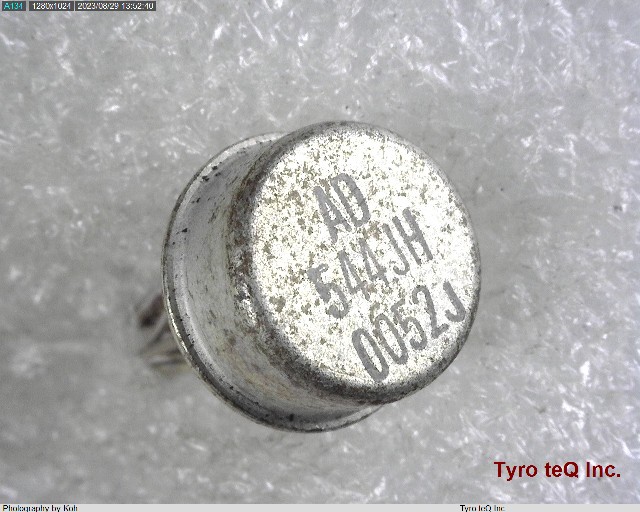

AD544JH
  • AD544JH
  • AD544JH
  • AD544JH
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD544JH の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD544JH
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 5.0E-5 uA
Bias Current-Max (IIB) @25C 5.0E-5 uA
Common-mode Reject Ratio-Min 76 dB
Common-mode Reject Ratio-Nom 76 dB
Frequency Compensation YES
Input Offset Voltage-Max 2000 uV
JESD-30 Code O-MBCY-W8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material METAL
Package Equivalence Code CAN8,.2
Package Shape ROUND
Package Style CYLINDRICAL Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Slew Rate-Min 8 V/us
Slew Rate-Nom 13 V/us
Sub Category Operational Amplifier
Supply Current-Max 2.5 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position BOTTOM
Unity Gain BW-Nom 2000 kHz
Voltage Gain-Min 20000
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
