AD536AJDZ データシート

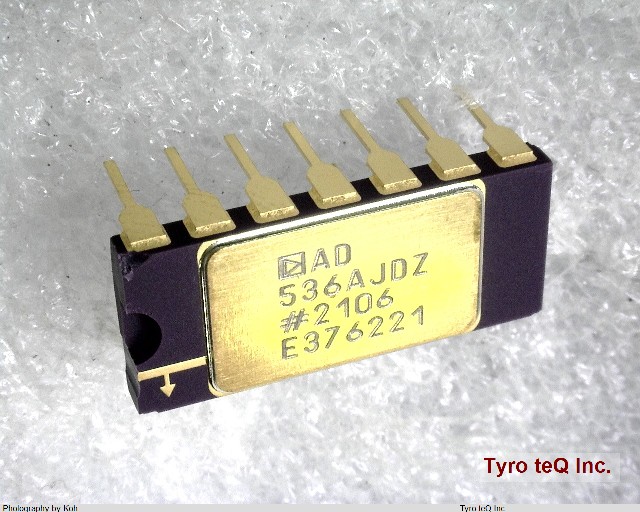

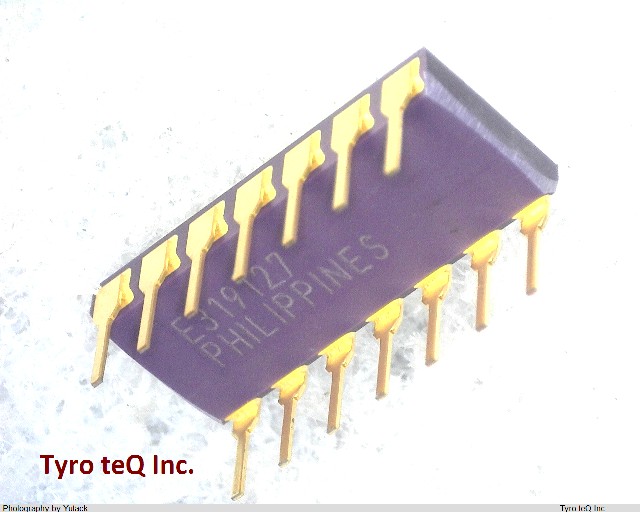

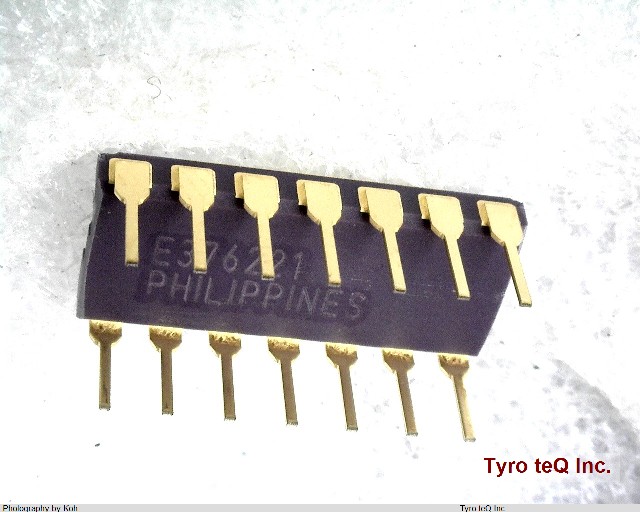

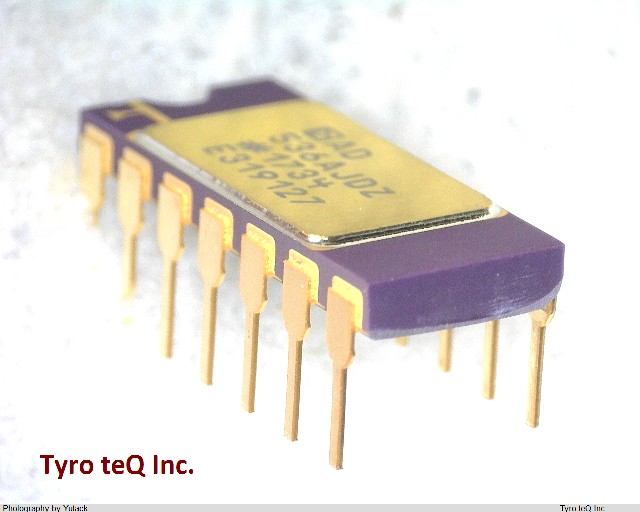

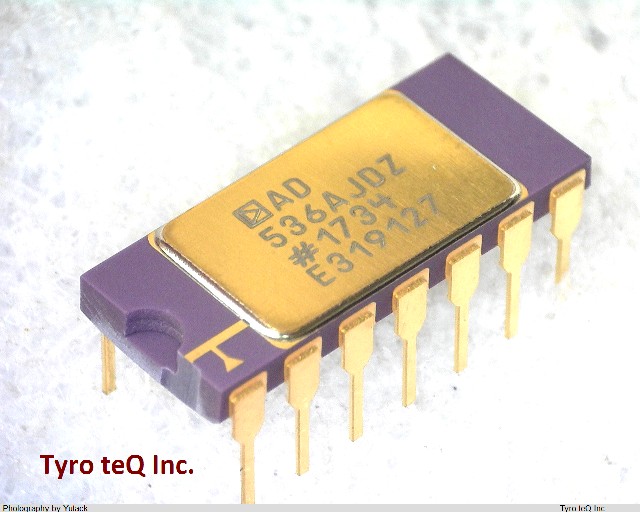

Name: AD536AJDZ
Brand: AD
SKU: 110014132-0000-0000-0000

AD536AJDZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD536AJDZ の詳細情報

型番	AD536AJDZ
メーカー	AD
データシート
Converter Type	RMS TO DC CONVERTER
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e4
Length	17.78 mm
Negative Supply Voltage-Max	-18 V
Negative Supply Voltage-Min	-3 V
Negative Supply Voltage-Nom	-15 V
Number of Functions	1
Number of Terminals	14
Operating Frequency-Max	0.09 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Positive Input Voltage-Max	7 V
Power Supplies	5/36/+-3/+-18 V
Qualification Status	Not Qualified
Sub Category	Analog Special Function Converters
Supply Current-Max	2 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Gold (Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Error-Max	0.5 %
Width	7.62 mm
