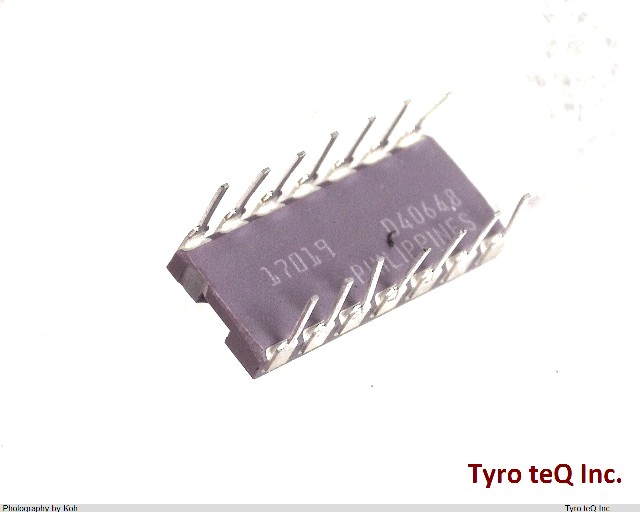

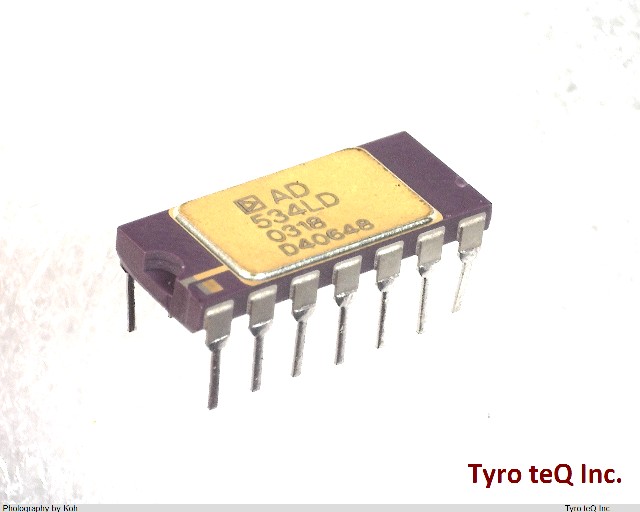

AD534LD データシート

Name: AD534LD
Brand: AD
SKU: 110001919-0000-0000-0000

AD534LD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD534LD の詳細情報

型番	AD534LD
メーカー	AD
データシート
Analog IC - Other Type	ANALOG MULTIPLIER OR DIVIDER
Bandwidth-Nom	1 kHz
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	17.78 mm
Neg Supply Voltage-Max (Vsup)	-18 V
Neg Supply Voltage-Min (Vsup)	-8 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Input Voltage-Max	-10 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Positive Input Voltage-Max	10 V
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Computational Functions
Supply Current-Max (Isup)	6 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	8 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Gold (Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
