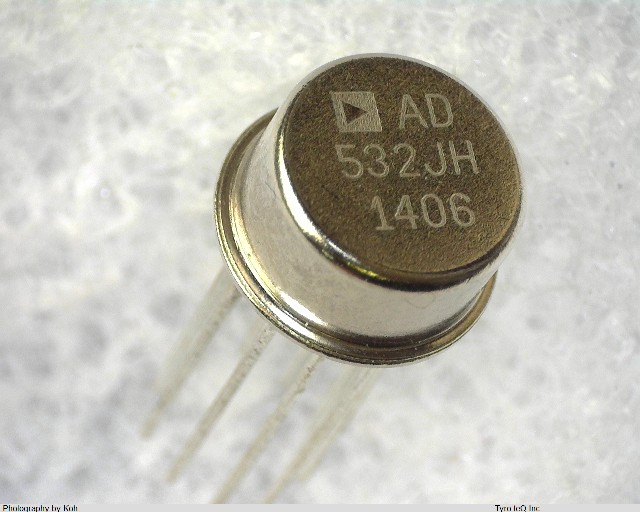

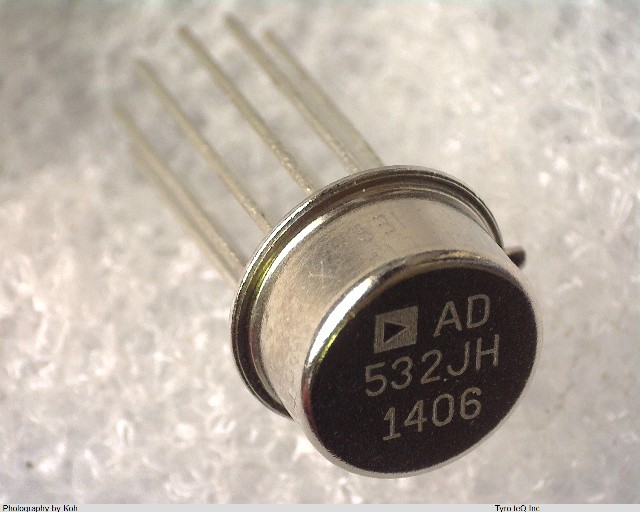

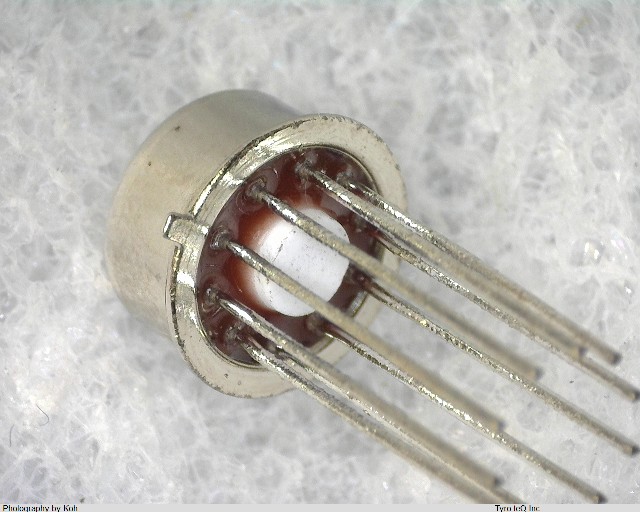

AD532JH データシート

Name: AD532JH
Brand: AD
SKU: 110014014-0000-0000-0000

AD532JH - AD の商品詳細ページです。

２営業日以内に回答いたします

AD532JH の詳細情報

型番	AD532JH
メーカー	AD
データシート
Analog IC - Other Type	ANALOG MULTIPLIER OR DIVIDER
Bandwidth-Nom	1 kHz
JESD-30 Code	O-MBCY-W10
JESD-609 Code	e0
Neg Supply Voltage-Max (Vsup)	-18 V
Neg Supply Voltage-Min (Vsup)	-10 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Input Voltage-Max	-10 V
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	METAL
Package Code	TO-100
Package Equivalence Code	CAN10,.23
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Positive Input Voltage-Max	10 V
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sub Category	Analog Computational Functions
Supply Current-Max (Isup)	6 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	10 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Gold (Au)
Terminal Form	WIRE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
