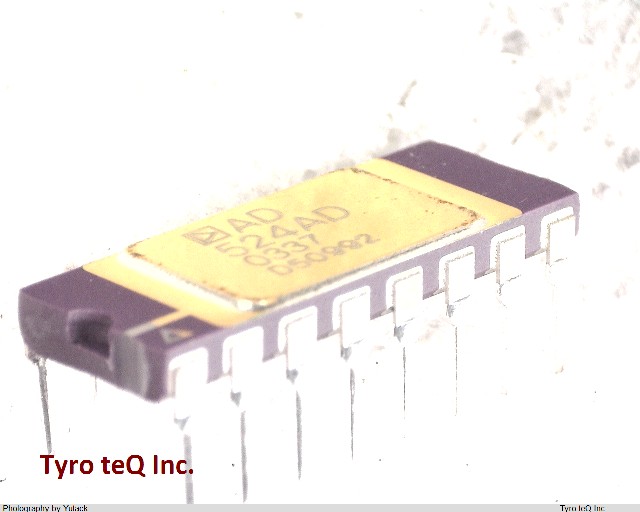

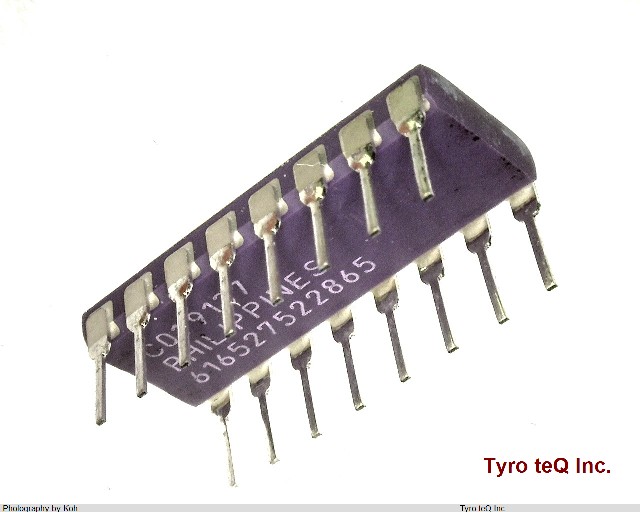

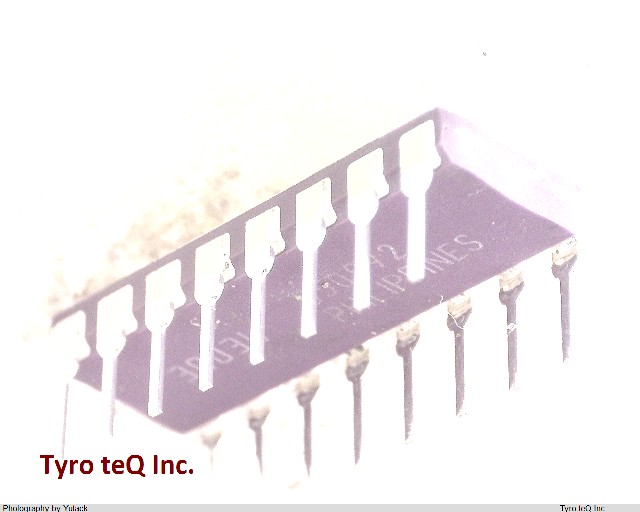

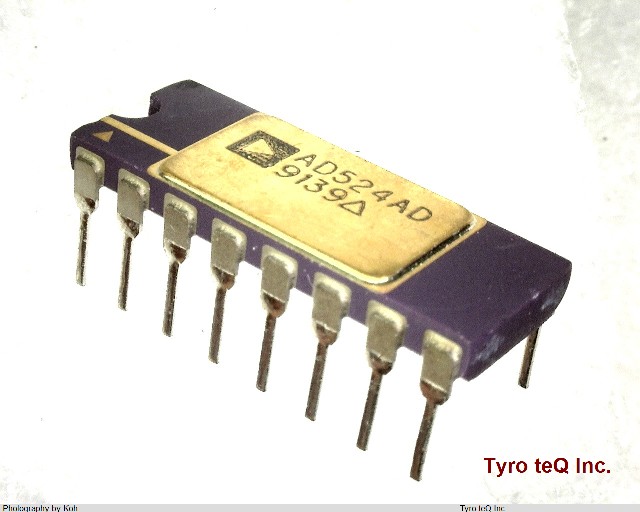

AD524AD データシート

Name: AD524AD
Brand: AD
SKU: 110000207-0000-0000-0000

AD524AD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD524AD の詳細情報

型番	AD524AD
メーカー	AD
データシート
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.05 uA
Bandwidth (3dB)-Nom	1 MHz
Common-mode Reject Ratio-Min	70 dB
Input Offset Current-Max (IIO)	0.035 uA
Input Offset Voltage-Max	250 uV
JESD-30 Code	R-CDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.01 %
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Nom	5 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	Gold (Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Gain-Max	1000
Voltage Gain-Min	1
Voltage Gain-Nom	10
Width	7.62 mm
