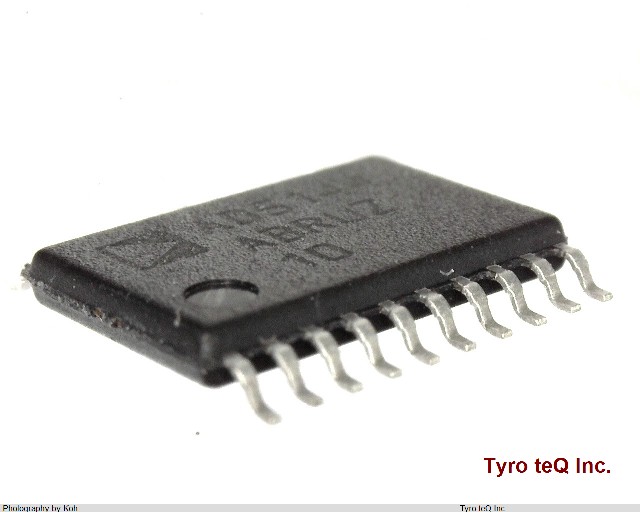

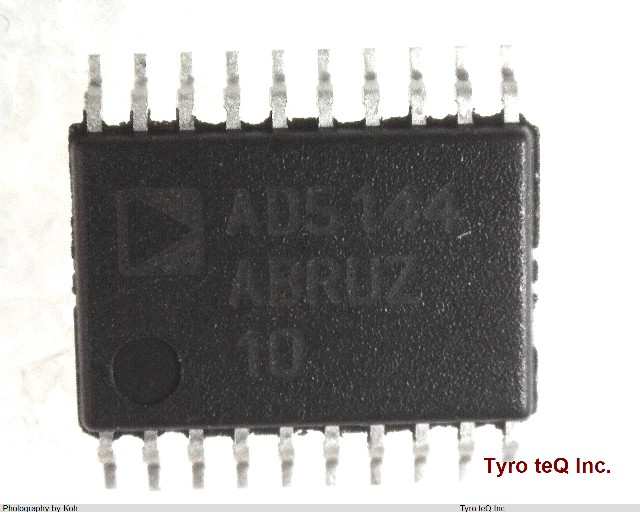

AD5144ABRUZ10 データシート

Name: AD5144ABRUZ10
Brand: AD
SKU: 110236707-0000-0000-0000

AD5144ABRUZ10 - AD の商品詳細ページです。

２営業日以内に回答いたします

AD5144ABRUZ10 の詳細情報

型番	AD5144ABRUZ10
メーカー	AD
データシート
Additional Feature	REST RESISTOR VALUES IS 10000OHM AND CONTROL INTERFACE IS INCREMENT/DECREMENT
Bandwidth-Nom	3 kHz
Control Interface	2-WIRE SERIAL
Converter Type	DIGITAL POTENTIOMETER
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	6.5 mm
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-2.5 V
Number of Functions	4
Number of Positions	256
Number of Terminals	20
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Resistance Law	LINEAR/LOGARITHMIC
Resistance Tolerance-Max	8 %
Resistor Terminal Voltage-Max	2.75 V
Resistor Terminal Voltage-Min	-2.25 V
Seated Height-Max	1.2 mm
Supply Voltage-Nom	2.5 V
Surface Mount	YES
Temperature Coefficient-Nom	35 ppm/Cel
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Resistance-Nom	100000 ohm
Width	4.4 mm
