AD5141BCPZ10-RL7 の詳細情報

  • 仕様・詳細
  • メーカー情報

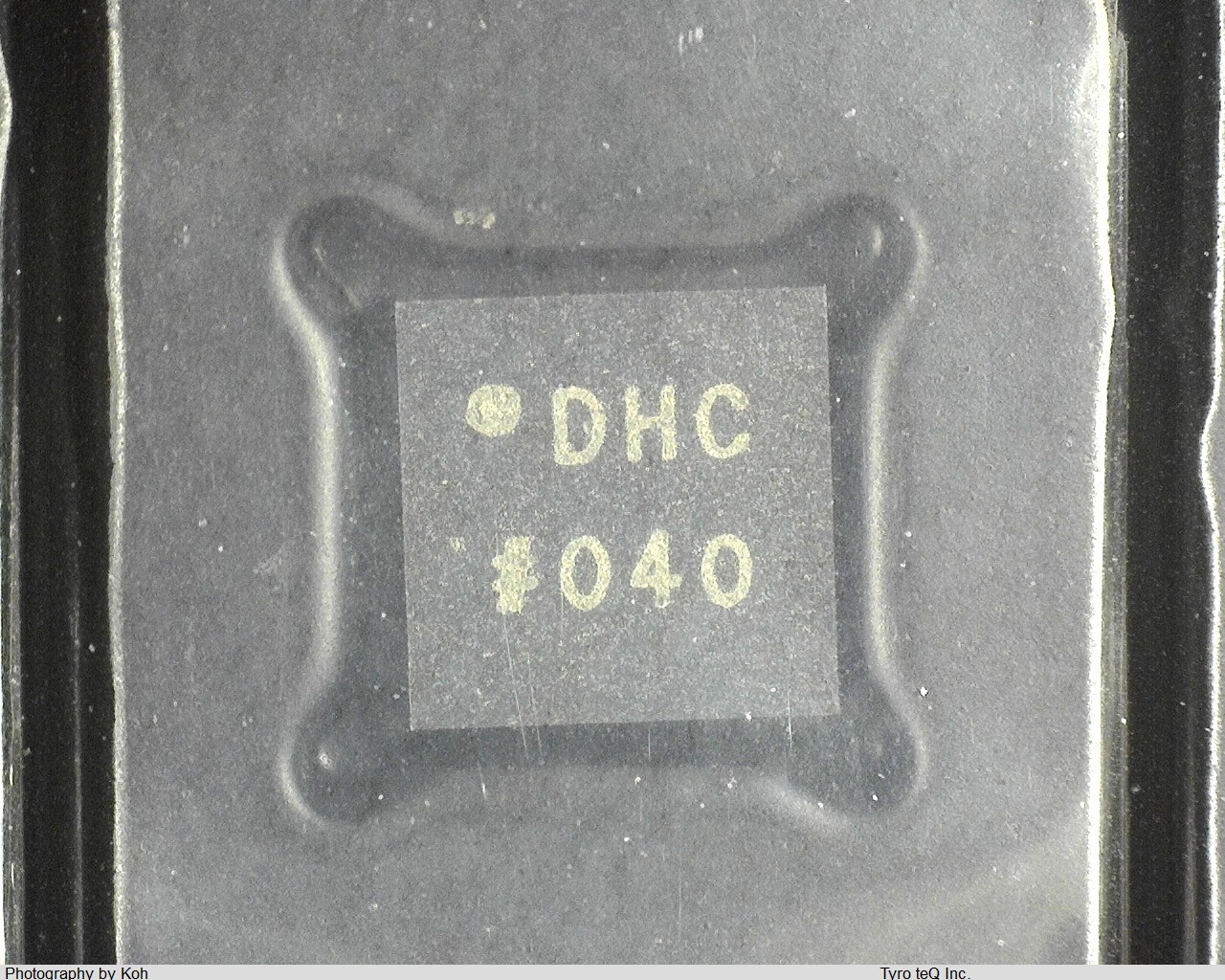

型番AD5141BCPZ10-RL7
メーカーAD
データシートProduct_list_pdf
Additional Feature REST RESISTOR VALUES IS 10000OHM AND CONTROL INTERFACE IS INCREMENT/DECREMENT
Bandwidth-Nom 3 kHz
Control Interface 2-WIRE SERIAL
Converter Type DIGITAL POTENTIOMETER
JESD-30 Code S-XQCC-N16
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 3
Negative Supply Voltage-Nom -2.5 V
Number of Functions 1
Number of Positions 256
Number of Terminals 16
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC16,.12SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies +-2.25/+-2.75/2.3/5.5 V
Qualification Status Not Qualified
Resistance Law LINEAR/LOGARITHMIC
Resistance Tolerance-Max 8 %
Resistor Terminal Voltage-Max 2.75 V
Resistor Terminal Voltage-Min -2.25 V
Seated Height-Max 0.8 mm
Sub Category Digital Potentiometers
Supply Voltage-Nom 2.5 V
Surface Mount YES
Technology CMOS
Temperature Coefficient-Nom 35 ppm/Cel
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Total Resistance-Nom 100000 ohm
Width 3 mm
