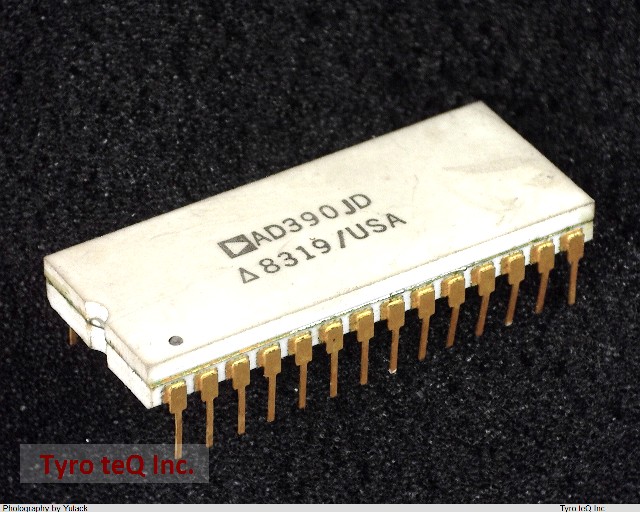

AD390JD データシート

Name: AD390JD
Brand: AD
SKU: 110013188-0000-0000-0000

AD390JD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD390JD の詳細情報

型番	AD390JD
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	OFFSET BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-CDIP-T28
JESD-609 Code	e0
Length	35.56 mm
Linearity Error-Max (EL)	0.0183 %
Negative Supply Voltage-Nom	-15 V
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.72 mm
Settling Time-Max	8 us
Settling Time-Nom (tstl)	4 us
Sub Category	Other Converters
Supply Current-Max	100 mA
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn63Pb37)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
