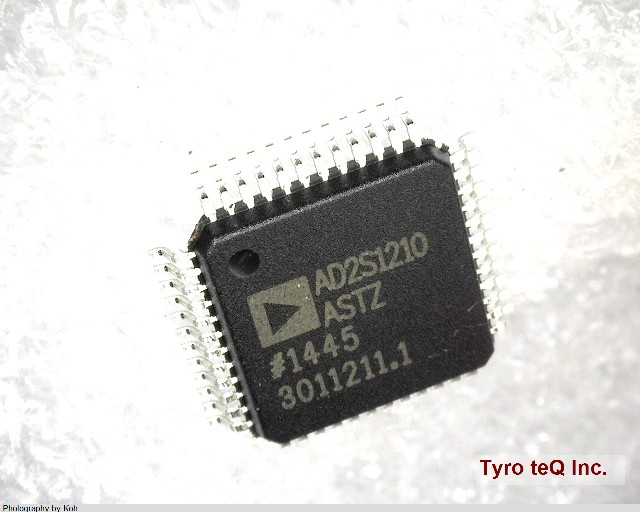

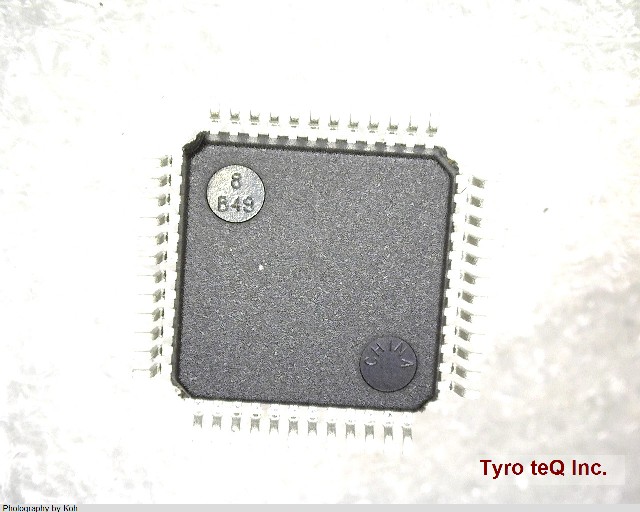

AD2S1210ASTZ
データシート
1
-
- 個
２営業日以内に回答いたします
AD2S1210ASTZ の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AD2S1210ASTZ |
|---|---|
| メーカー | AD |
| データシート |  |
| Analog Input Voltage-Max | 4 V |
| Angular Accuracy-Max | 10 arc min |
| Converter Type | SYNCHRO OR RESOLVER TO DIGITAL CONVERTER |
| JESD-30 Code | S-PQFP-G48 |
| JESD-609 Code | e3 |
| Length | 7 mm |
| Moisture Sensitivity Level | 3 |
| Number of Bits | 16 |
| Number of Functions | 1 |
| Number of Terminals | 48 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | TQFP48,.3SQ |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.6 mm |
| Signal/Output Frequency | 20000 Hz |
| Supply Current-Max | 12 mA |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Tracking Rate-Max | 156.25 rps |
| Width | 7 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
