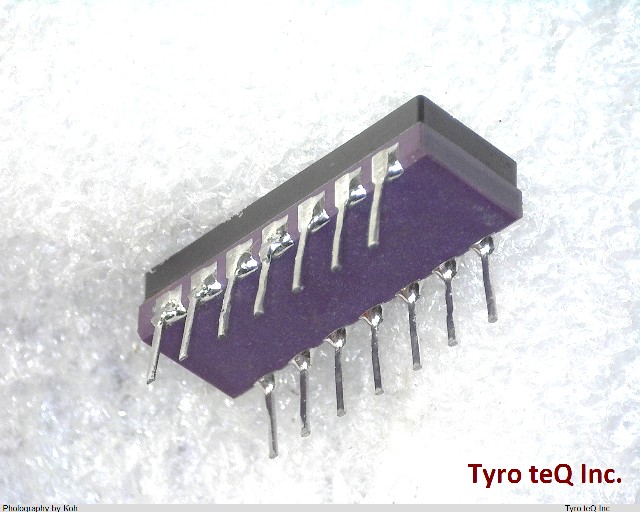

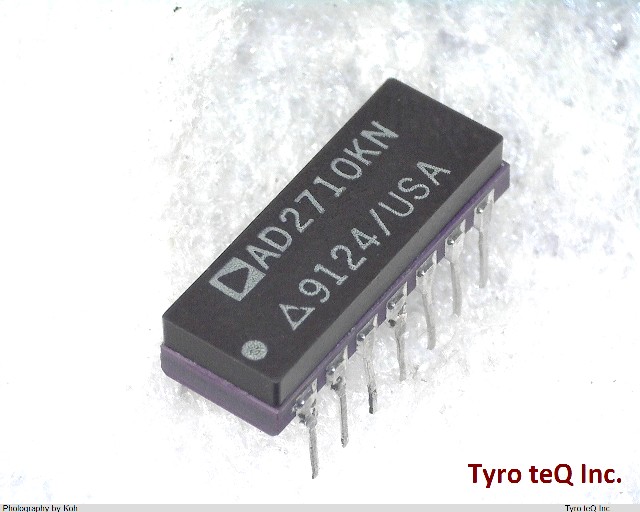

AD2710KN データシート

Name: AD2710KN
Brand: AD
SKU: 110223424-0000-0000-0000

AD2710KN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD2710KN の詳細情報

型番	AD2710KN
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	19.305 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	10.001 V
Output Voltage-Min	9.999 V
Output Voltage-Nom	10 V
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	14 mA
Supply Voltage-Max (Vsup)	16.5 V
Supply Voltage-Min (Vsup)	13.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	HYBRID
Temp Coef of Voltage-Max	5 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trim/Adjustable Output	YES V
Voltage Tolerance-Max	0.01 %
Width	7.62 mm
