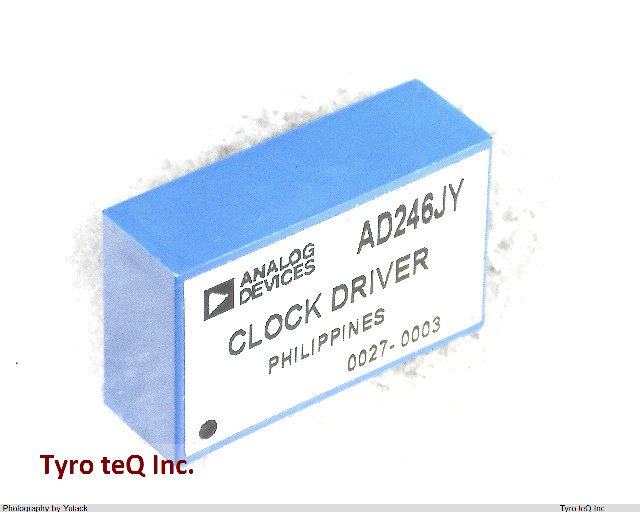

AD246JY データシート

Name: AD246JY
Brand: AD
SKU: 110000334-0000-0000-0000

AD246JY - AD の商品詳細ページです。

２営業日以内に回答いたします

AD246JY の詳細情報

型番	AD246JY
メーカー	AD
データシート
Family	AD24
Input Conditioning	STANDARD
JESD-30 Code	R-PDXA-T4
Logic IC Type	LOW SKEW CLOCK DRIVER
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	4
Number of True Outputs	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	ZIP4/13,.1,.1
Package Shape	RECTANGULAR
Package Style	VERTICAL IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	15.9 mm
Sub Category	Clock Drivers
Supply Voltage-Min (Vsup)	14.25 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	OTHER
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.5 mm
