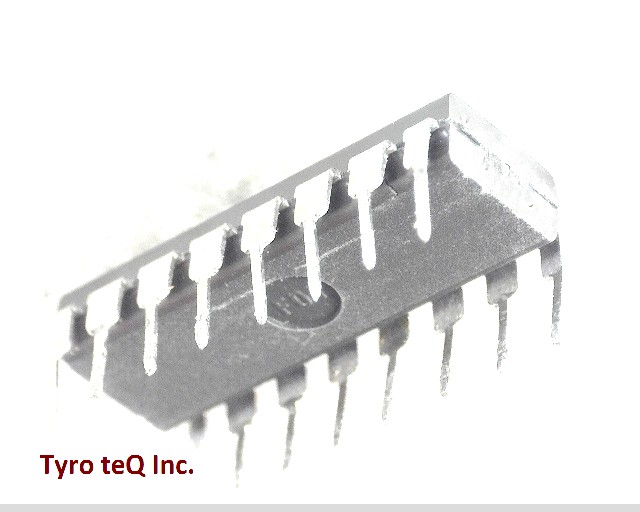

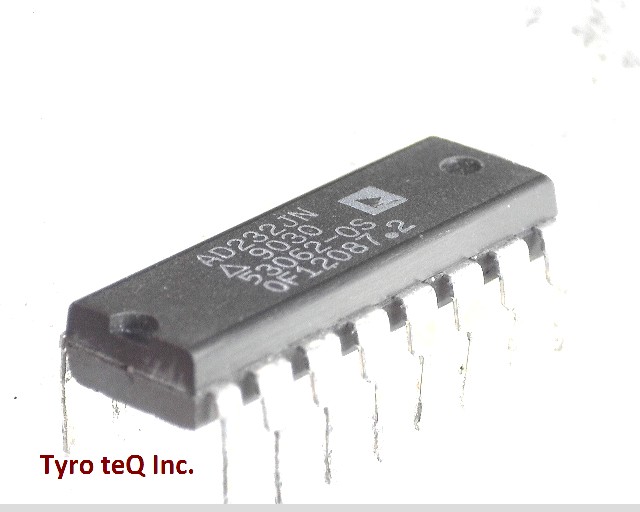

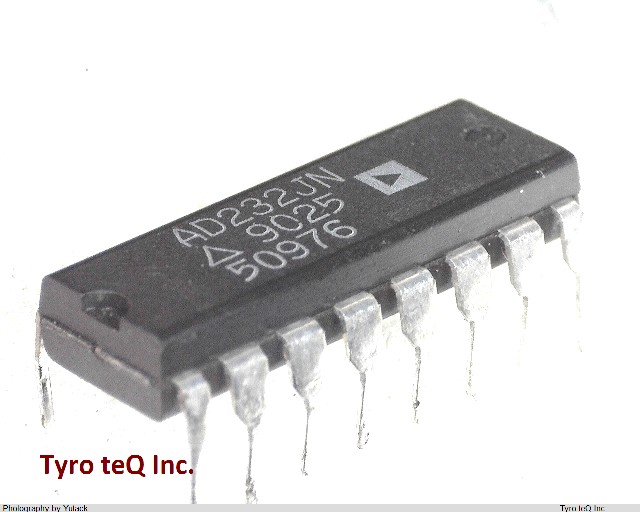

AD232JN データシート

Name: AD232JN
Brand: AD
SKU: 110001813-0000-0000-0000

AD232JN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD232JN の詳細情報

型番	AD232JN
メーカー	AD
データシート
Differential Output	NO
Driver Number of Bits	2
High Level Input Current-Max	0.0002 Amp
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-C; V.28
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	20.13 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	10 V
Output Low Current-Max	0.0032 Amp
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Receiver Number of Bits	2
Seated Height-Max	5.33 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
