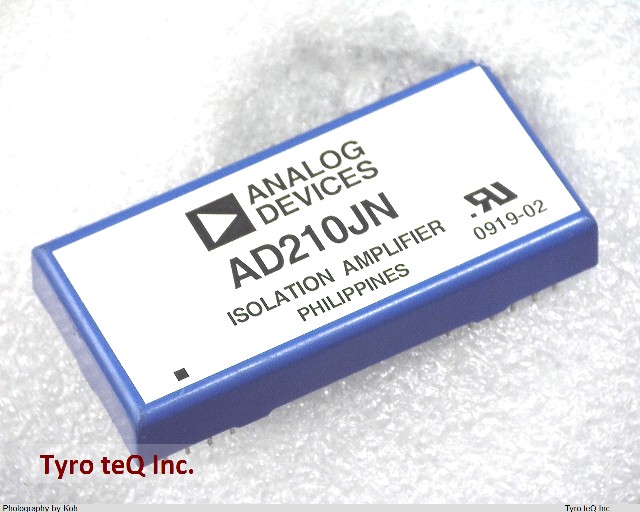

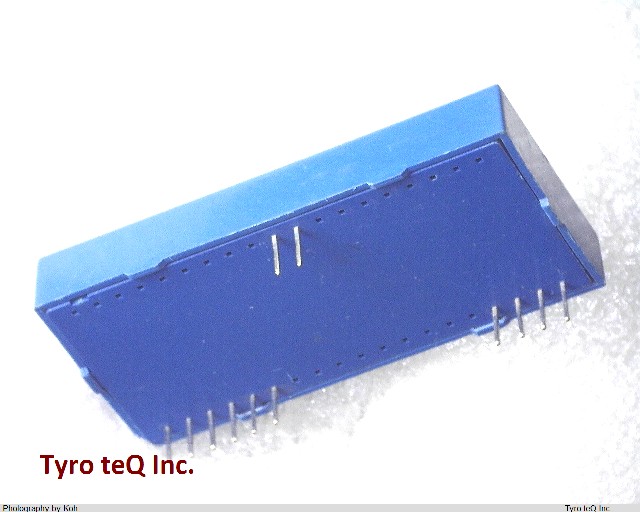

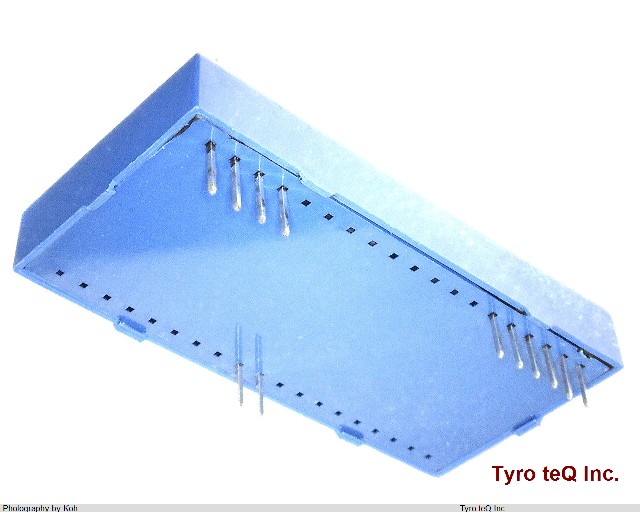

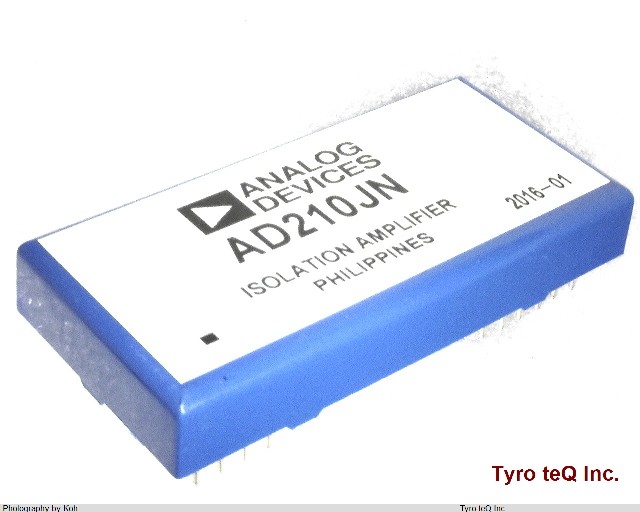

AD210JN データシート

Name: AD210JN
Brand: AD
SKU: 110013060-0000-0000-0000

AD210JN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD210JN の詳細情報

型番	AD210JN
メーカー	AD
データシート
Amplifier Type	ISOLATION AMPLIFIER
Bandwidth (3dB)-Nom	15 MHz
Common Mode Voltage-Max	2000 V
JESD-30 Code	R-PDIP-T12
Length	53.3 mm
Number of Functions	1
Number of Terminals	12
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP12/38,.8
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	15 V
Qualification Status	Not Qualified
Sub Category	Isolation Amplifier
Supply Current-Max	50 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Gain-Max	100
Voltage Gain-Min	1
Width	20.32 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
