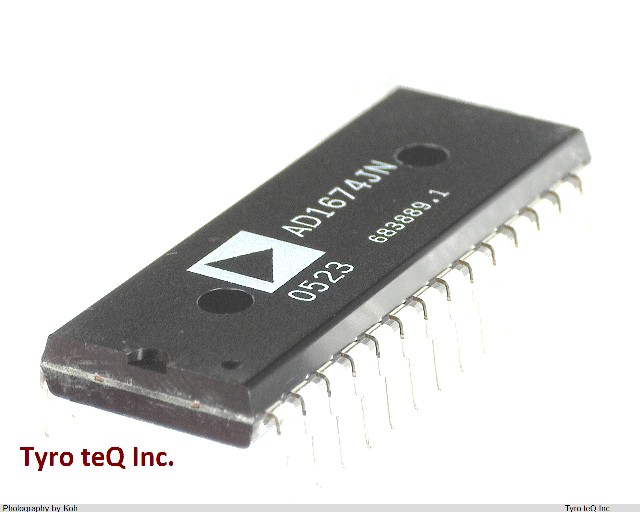

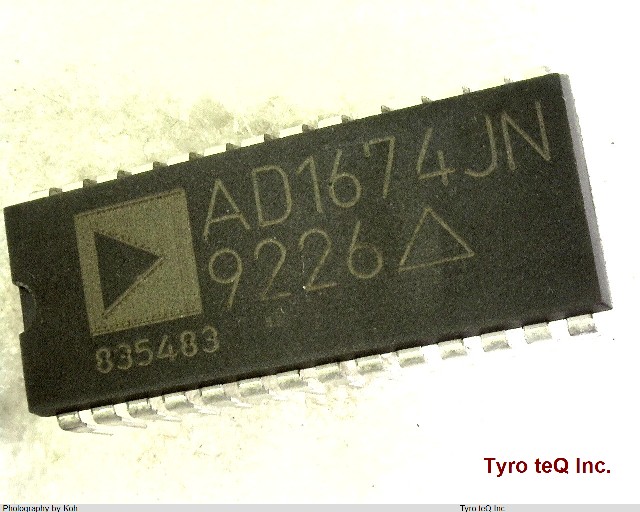

AD1674JN データシート

Name: AD1674JN
Brand: AD
SKU: 110012876-0000-0000-0000

AD1674JN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD1674JN の詳細情報

型番	AD1674JN
メーカー	AD
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Conversion Time-Max	10 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37.4 mm
Linearity Error-Max (EL)	0.0244 %
Negative Supply Voltage-Nom	-15 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	5,+-12/+-15 V
Qualification Status	Not Qualified
Sample Rate	0.111 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	6.35 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	18 mA
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	15.24 mm
