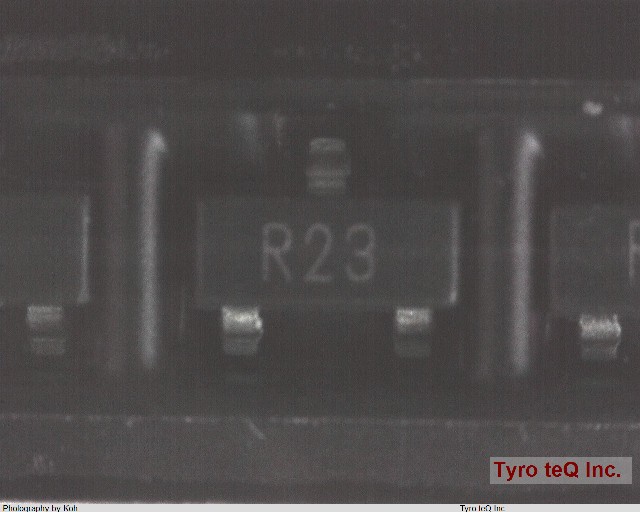

AD1583BRTZ

Name: AD1583BRTZ
Brand: AD
SKU: 110106021-0000-0000-0000

AD1583BRTZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD1583BRTZ の詳細情報

型番	AD1583BRTZ
メーカー	AD
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	3.003 V
Output Voltage-Min	2.997 V
Output Voltage-Nom	3 V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TO-236
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.12 mm
Sub Category	Voltage References
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	3.2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temp Coef of Voltage-Max	50 ppm/Cel
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.1 %
Width	1.3 mm
