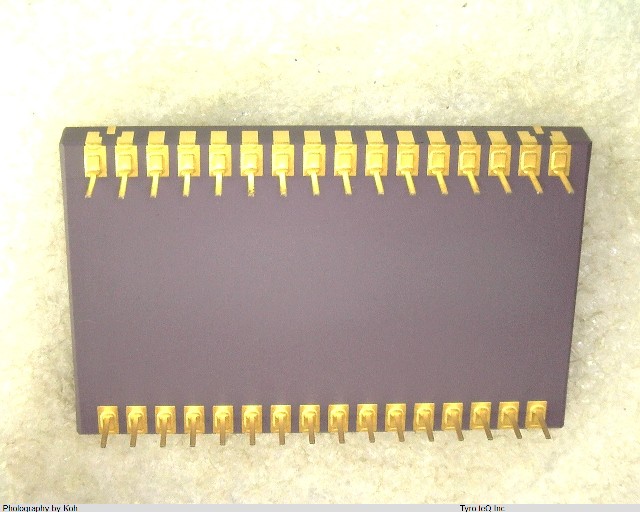

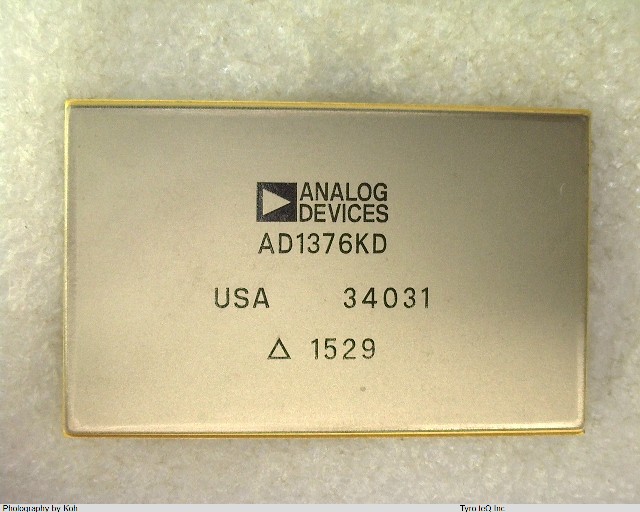

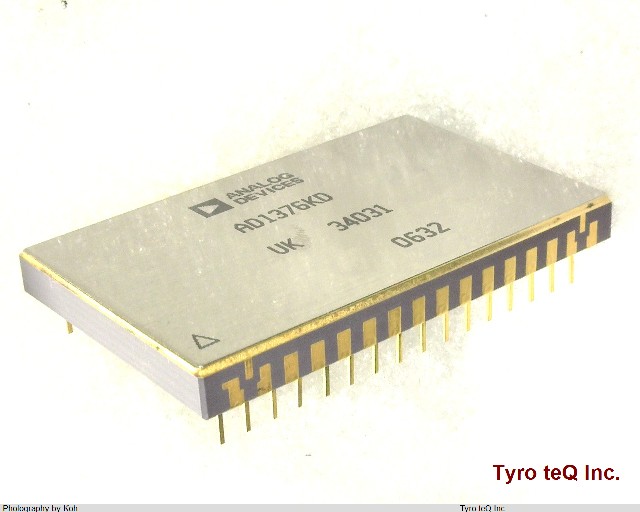

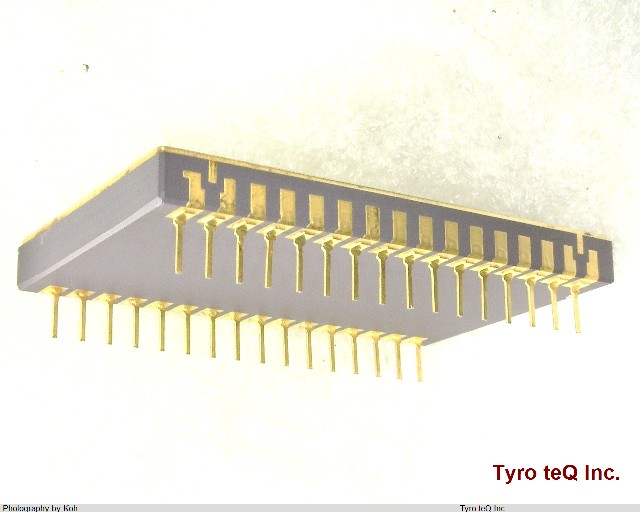

AD1376KD データシート

Name: AD1376KD
Brand: AD
SKU: 110012786-0000-0000-0000

AD1376KD - AD の商品詳細ページです。

２営業日以内に回答いたします

AD1376KD の詳細情報

型番	AD1376KD
メーカー	AD
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Conversion Time-Max	17 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-CDIP-T32
JESD-609 Code	e4
Linearity Error-Max (EL)	0.003 %
Negative Supply Voltage-Nom	-15 V
Number of Analog In Channels	1
Number of Bits	16
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY, COMPLEMENTARY OFFSET BINARY
Output Format	PARALLEL, WORD
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP32,.9
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Sample Rate	0.065 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	5.72 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	Gold (Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	22.86 mm
