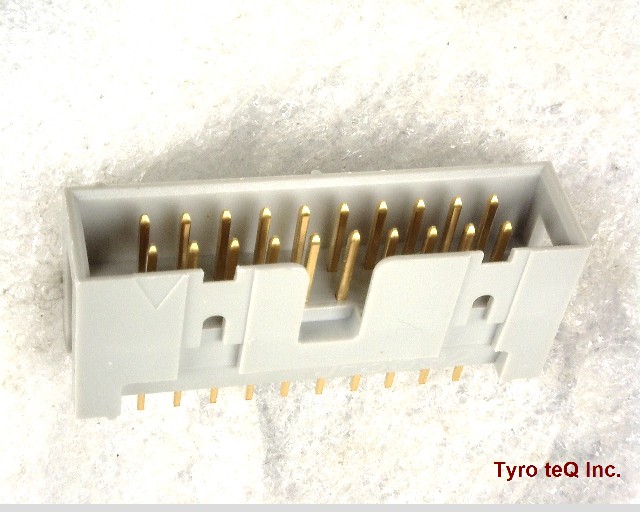

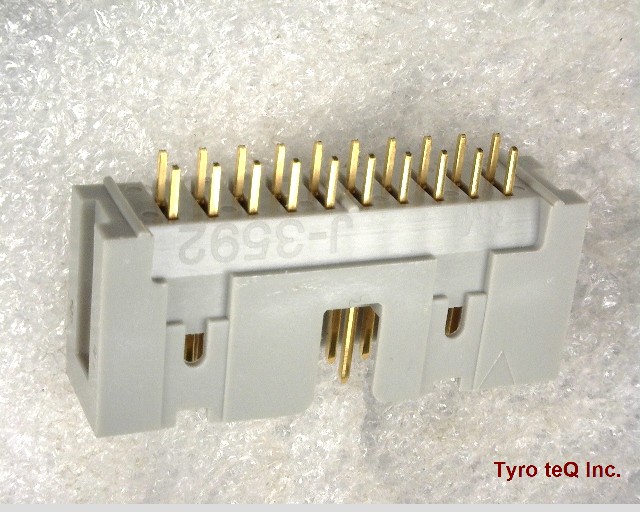

J3592-6002PL データシート

Name: J3592-6002PL
Brand: 3M
SKU: 200079689-0000-0000-0000

J3592-6002PL - 3M の商品詳細ページです。

２営業日以内に回答いたします

J3592-6002PL の詳細情報

型番	J3592-6002PL
メーカー	3M
データシート
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	1414VAC V
Durability	100 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	1.96 N
Insulation Resistance	1000000000 ohm
Insulator Color	GRAY
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	7.87u inch
Rated Current (Signal)	1 A
Terminal Length	0.11 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	20
Withdrawl Force-Min	0.49 N
