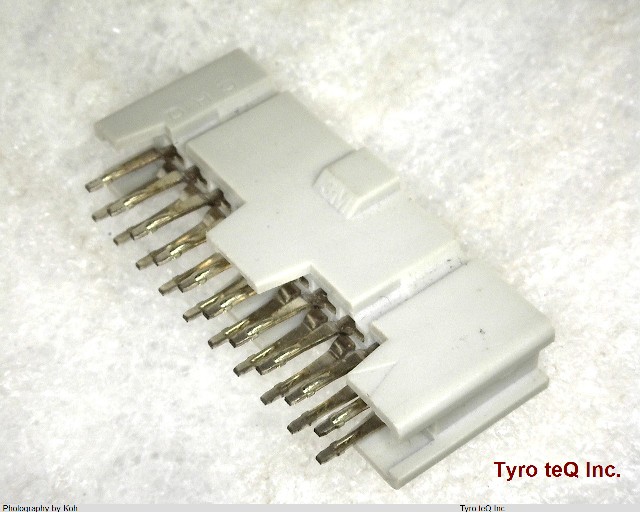

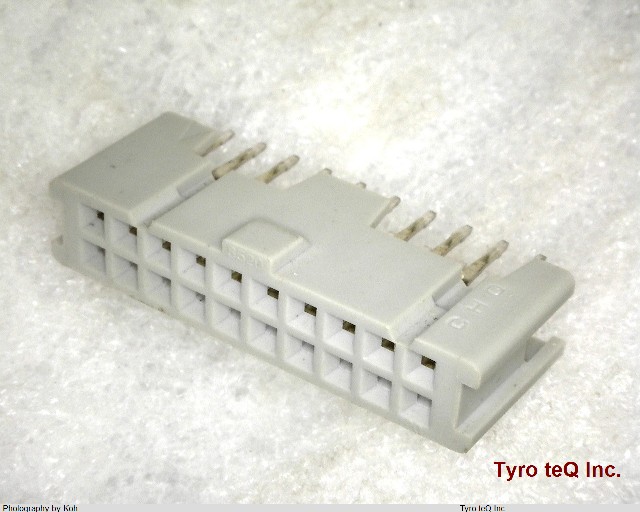

9120-4500PL データシート

Name: 9120-4500PL
Brand: 3M
SKU: 100108834-0000-0000-0000

9120-4500PL - 3M の商品詳細ページです。

２営業日以内に回答いたします

9120-4500PL の詳細情報

型番	9120-4500PL
メーカー	3M
データシート
Additional Feature	3M, POLARIZED
Body Breadth	0.28 inch
Body Depth	0.354 inch
Body Length	1.177 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (12) OVER NICKEL (79)
Contact Finish - Termination	GOLD FLASH OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	GRAY
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	9100
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	12u inch
Polarization Key	DUAL POLARIZED
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.11 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
