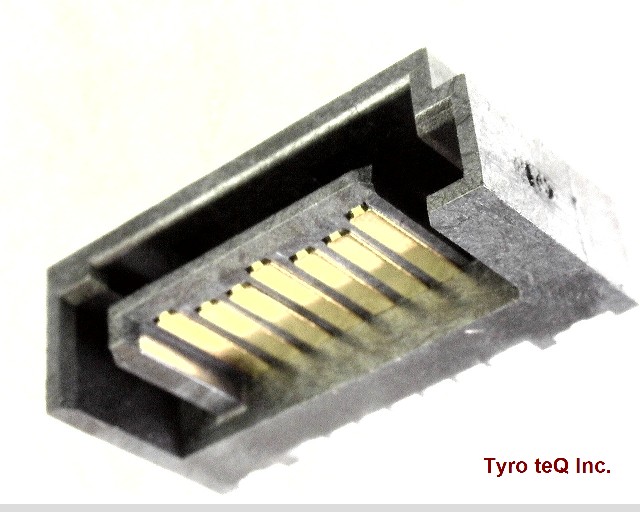

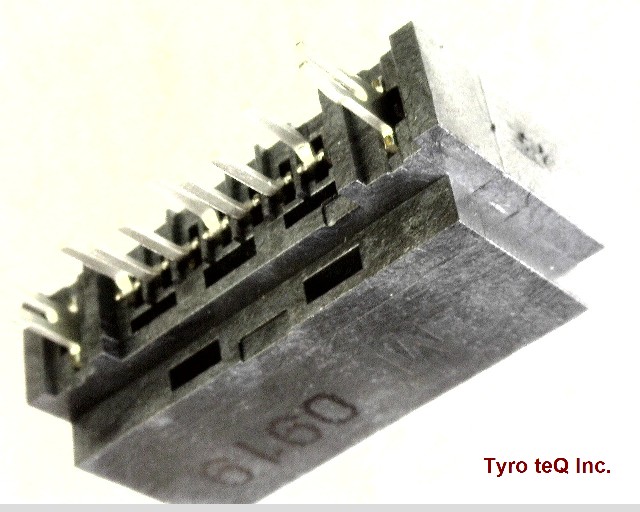

5607-5102-SH データシート

Name: 5607-5102-SH
Brand: 3M
SKU: 60163765-0000-0000-0000

5607-5102-SH - 3M の商品詳細ページです。

２営業日以内に回答いたします

5607-5102-SH の詳細情報

型番	5607-5102-SH
メーカー	3M
データシート
Additional Feature	3M, POLARIZED
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.224 inch
Body Depth	0.331 inch
Body Length	0.661 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD FLASH OVER NICKEL (50)
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYETHYLENE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	.9906 mm
Plating Thickness	FLASH inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	7
UL Flammability Code	94V-0
