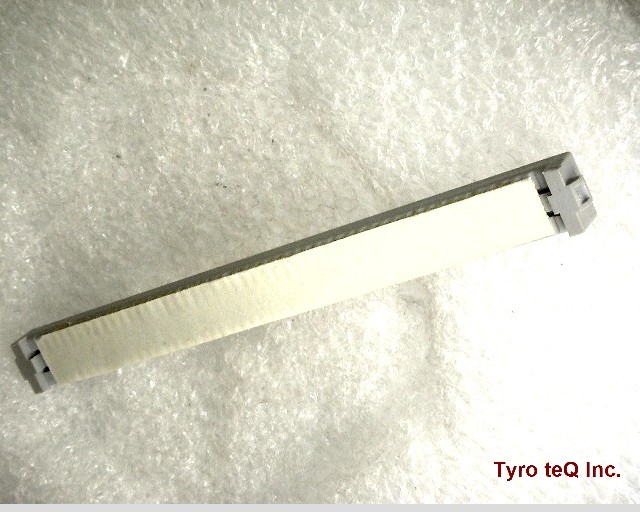

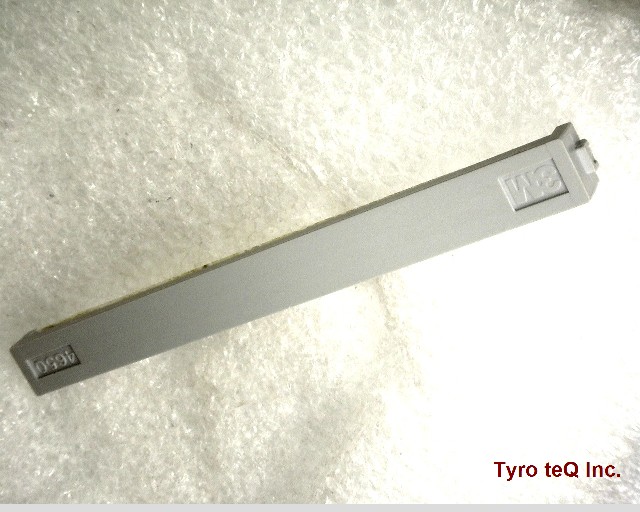

4650-6000

Name: 4650-6000
Brand: 3M
SKU: 400063743-0000-0000-0000

4650-6000 - 3M の商品詳細ページです。

２営業日以内に回答いたします

4650-6000 の詳細情報

型番	4650-6000
メーカー	3M
Additional Feature	POLARIZED
Body Breadth	0.331 inch
Body Depth	0.525 inch
Body Length	3.5 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	GRAY
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	30u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	50
UL Flammability Code	94V-0
Wire Size-Max	26 AWG
Wire Size-Min	28 AWG
