264-1300-00-0602J データシート

Name: 264-1300-00-0602J
Brand: 3M
SKU: 30255266-0000-0000-0000

264-1300-00-0602J - 3M の商品詳細ページです。

２営業日以内に回答いたします

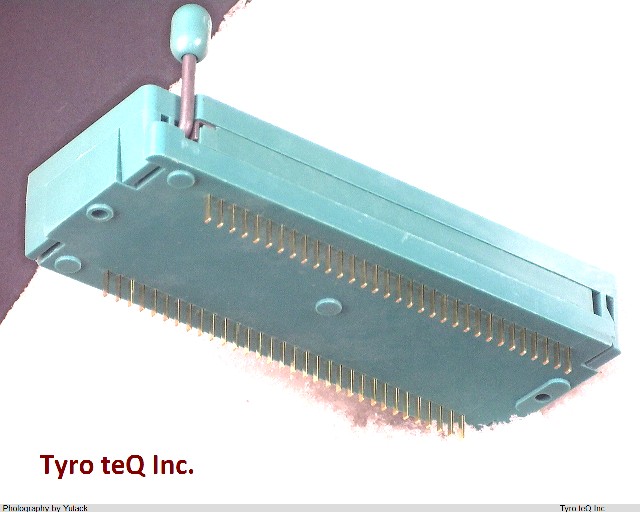

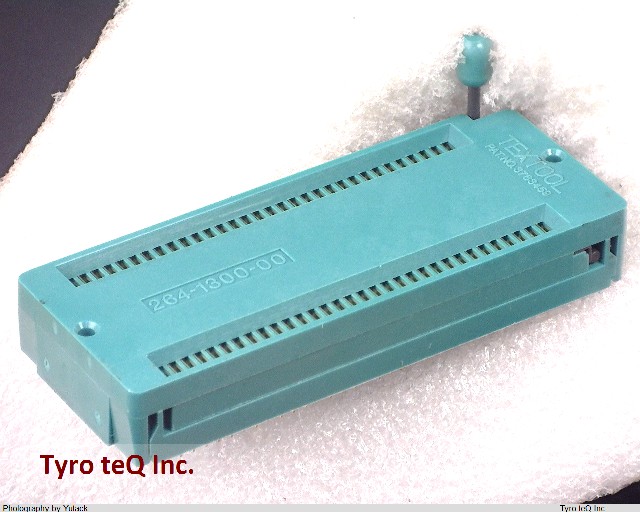

264-1300-00-0602J の詳細情報

型番	264-1300-00-0602J
メーカー	3M
データシート
Additional Feature	STANDARD: UL 94V-0
Body Breadth	1.114 inch
Body Depth	0.457 inch
Body Length	2.854 inch
Contact Finish - Mating	GOLD FLASH OVER NICKEL (50)
Contact Finish - Termination	GOLD FLASH OVER NICKEL (50)
Contact Material	BERYLLIUM COPPER
Contact Style	BLADE PIN-SKT
Current Rating	1 A
Device Socket Type	IC SOCKET
Device Type Used On	DIP64
Dielectric Withstanding Voltage	1400VAC V
Housing Material	GLASS FILLED POLYSULFONE
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Mating Contact Pitch	0.07 inch
Mounting Style	STRAIGHT
Number of Contacts	64
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	0.807 mm
Terminal Pitch	1.778 mm
Termination Type	SOLDER
