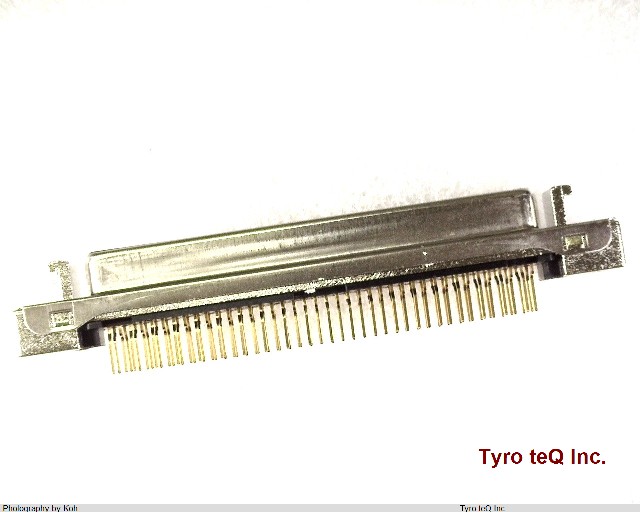

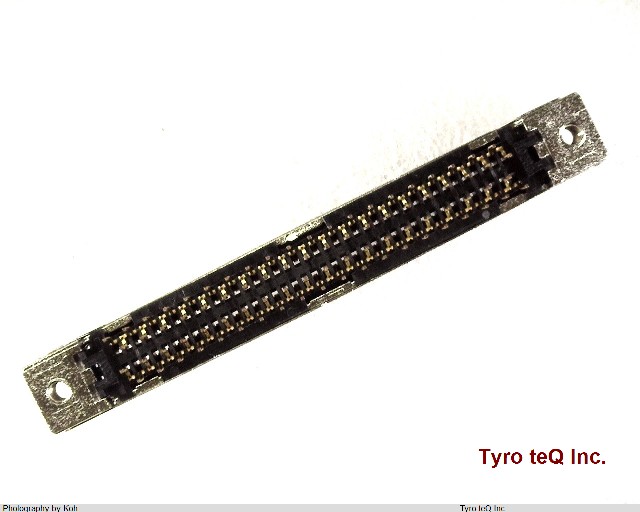

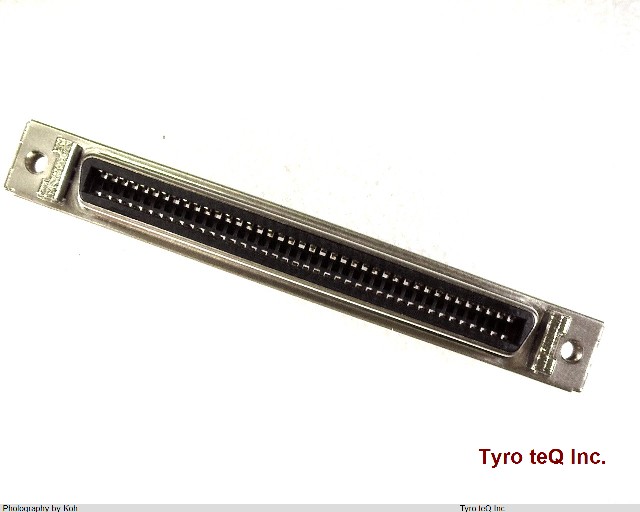

10280-6202PL データシート

Name: 10280-6202PL
Brand: 3M
SKU: 400037330-0000-0000-0000

10280-6202PL - 3M の商品詳細ページです。

２営業日以内に回答いたします

10280-6202PL の詳細情報

型番	10280-6202PL
メーカー	3M
データシート
Body Breadth	0.36 inch
Body Depth	0.44 inch
Body Length	2.81 inch
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Style	CENTRONIC
Dielectric Withstanding Voltage	707VAC V
Empty Shell	NO
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	4
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Rated Current (Signal)	1 A
Reference Standard	CUL; UL
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Terminal Length	0.134 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	80
UL Flammability Code	94V-0
