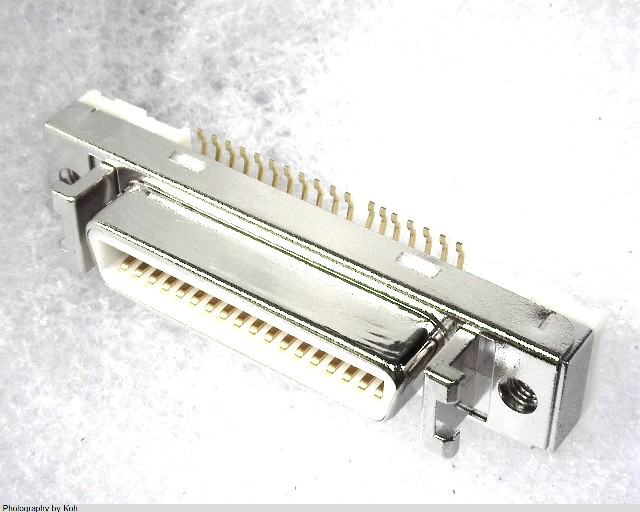

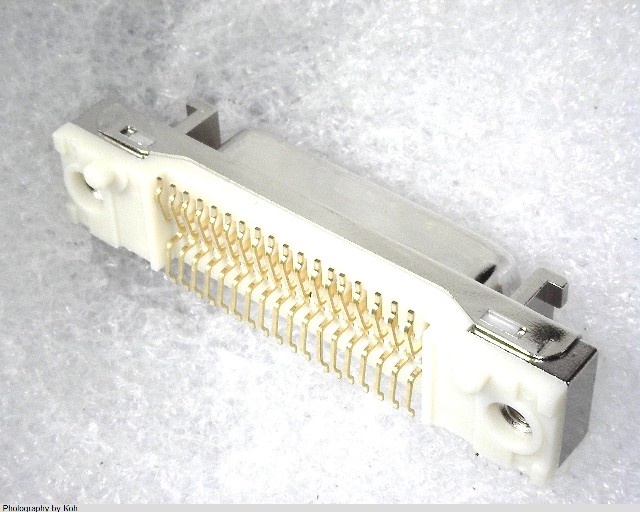

10236-2200PE データシート

Name: 10236-2200PE
Brand: 3M
SKU: 20496408-0000-0000-0000

10236-2200PE - 3M の商品詳細ページです。

２営業日以内に回答いたします

10236-2200PE の詳細情報

型番	10236-2200PE
メーカー	3M
データシート
Additional Feature	3M, LATCHED, PANEL MOUNTABLE, SHROUDED
Body Breadth	0.36 inch
Body Depth	0.23 inch
Body Length	1.715 inch
Body/Shell Style	RECEPTACLE
Connector Type	OTHER D TYPE CONNECTOR
Contact Finish - Mating	GOLD (20) OVER NICKEL (80)
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	PCT-POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	102
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	MOUNTING FLANGE
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.8072 mm
Plating Thickness	20u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Sub Category	D Type Connectors
Terminal Pitch	1.27 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	36
UL Flammability Code	94V-0
